09 0124 290 06 | binder

Panel socket, 6 pole, THT, screw locking, straight, 09 0124 290 06

Order No.: 70P1477
EAN: 4099891703059
MPN:
09 0124 290 06
Series: 723

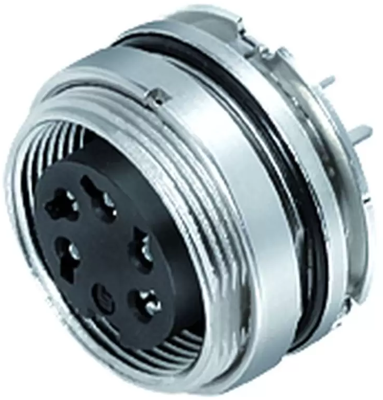

09 0124 290 06 binder Other Circular Connectors Image 1

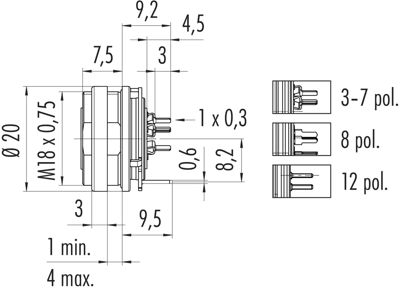

09 0124 290 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.3986 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
15.40 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3986 €
10 pcs.
14.3157 €
50 pcs.
13.3280 €
100 pcs.
12.3879 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0124 290 06, binder

M16 IP67 Female panel mount connector, Contacts: 6 DIN, shieldable, THT, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Version panel socket
Orientation straight
Shell Material zinc die casting
Pin number 6 pole
Additional parts equipped
Contact connection THT
contact surface silver-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
