09 0121 70 06 | binder

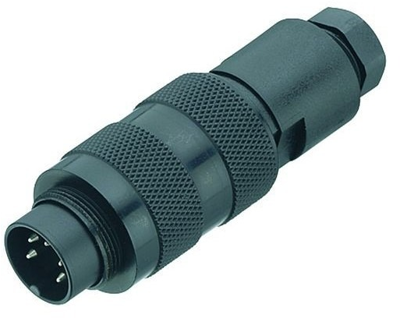

Plug, 6 pole, solder connection, screw locking, straight, 09 0121 70 06
Unit Price (€ / pc.)
18.4331 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
18.43 € *
Price list
Quantity
Price per unit*
1 pcs.
18.4331 €
10 pcs.
17.3145 €
50 pcs.
16.2792 €
100 pcs.
15.3034 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature connector, 09-0121-70-06, BINDER
M16 IP67 Male cable connector, Contacts: 6 DIN, 6.0-8.0 mm, unshielded, solder, IP67.
Features
- Contact material: CuZn
- Pollution degree: 1
- Overvoltage category: I
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 6 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 6 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | silver-plated | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
