09 0116 99 05 | binder

Panel socket, 5 pole, THT, screw locking, straight, 09 0116 99 05

Order No.: 70P1447
EAN: 4099891702786
MPN:
09 0116 99 05
Series: 723

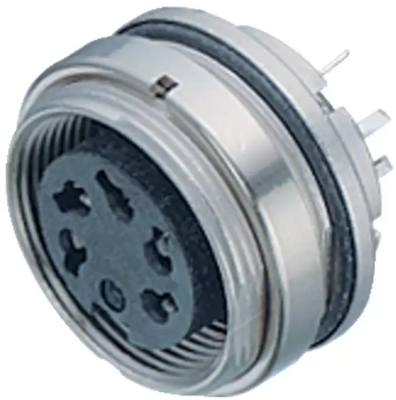

09 0116 99 05 binder Other Circular Connectors Image 1
09 0116 99 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.6017 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
13.60 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6017 €
10 pcs.
12.6378 €
50 pcs.
11.7453 €
100 pcs.
10.5791 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0116 99 05, binder

M16 IP67 Female panel mount connector, Contacts: 5, unshielded, THT, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Contact connection THT
Pin number 5 pole
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
