09 0112 09 04 | binder

Panel socket, 4 pole, solder connection, screw locking, straight, 09 0112 09 04

Order No.: 70P1420
EAN: 4099891702601
MPN:
09 0112 09 04
Series: 723

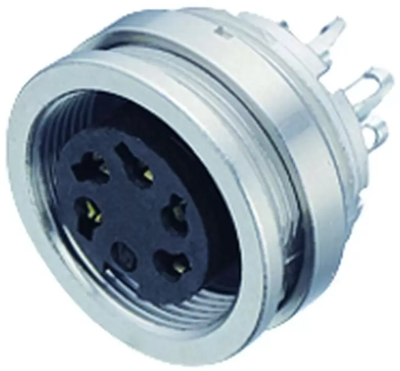

09 0112 09 04 binder Other Circular Connectors Image 1

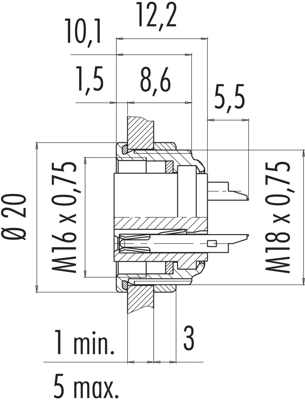

09 0112 09 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.0075 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.01 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0075 €
10 pcs.
10.2340 €
50 pcs.
9.5200 €
100 pcs.
8.5680 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0112 09 04, binder

M16 IP67 Female panel mount connector, Contacts: 4, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Pin number 4 pole
Contact connection solder connection
Assembly panel mounting
Version panel socket
Cable cross-section 0.75 mm²
Shell Material zinc die casting
Orientation straight
contact surface gold-plated
Additional parts equipped
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
