09 0108 80 03 | binder

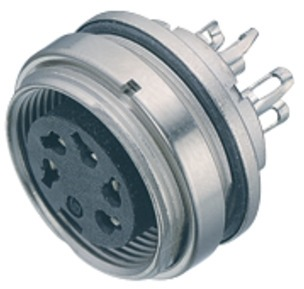

Panel socket, 3 pole, solder cup, screw locking, straight, 09 0108 80 03

Order No.: 66F742
EAN: 4099889728705
MPN:
09 0108 80 03
Series: 723
09 0108 80 03 binder Other Circular Connectors Image 1
09 0108 80 03 binder Other Circular Connectors Image 2
09 0108 80 03 binder Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
11.5668 € *
Available: 1 pcs.
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.57 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5668 €
10 pcs.
10.1745 €
50 pcs.
9.4962 €
150 pcs.
9.0678 €
500 pcs.
8.6037 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 423../723.

Robust, water-proof, with screwed cable gland. Compatible with other products which have the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: 2- to 8-pole silver-plated, 12- and 24-pole: gold-plated. Cable connection: solder contacts, 2- to 8-pole max. 0.75 mm², 12- and 19-pole max. 0.25 mm², 24-pole max. 0.14 mm². Contact carrier: PBT to UL 94 V-0. Straight cable housing: nickel-plated brass. Angled cable housing: zinc die-cast, nickel-plated. Flanged housing: zinc die-cast, nickel-plated. Cable entry: 4.0 to 6.0 mm (Pg 7), 6.0 to 8.0 mm (Pg 9). Degree of protection in mated state (IEC 60529): IP 67. Test voltage: 2- to 5-pole (without 5-pole stereo) 1750 VAC, 5-pole stereo and 8- to 24-pole 550 VAC, 6- and 7-pole 910 V. Contact resistance: 2- to 8-pole max. 5.0 mohm, 12- and 24-pole max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: –30 to +95 °C.

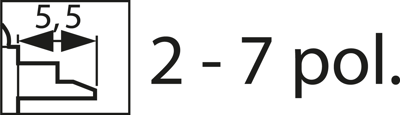

Front screw mount, solder terminals, type 723.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0108-80-03, 3-pole, 250 V/7.0 A

Technical specifications
Filter Property Value
Version panel socket
Contact connection solder cup
Cable cross-section 0.75 mm²
Orientation straight
Additional parts equipped
contact surface silver-plated
Pin number 3 pole
Type of locking screw locking
Shell Material zinc die casting
Assembly PCB mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
