09 0108 300 03 | binder

Panel socket, 3 pole, solder connection, screw locking, straight, 09 0108 300 03

Order No.: 70P1403
EAN: 4099891702458
MPN:
09 0108 300 03
Series: 723

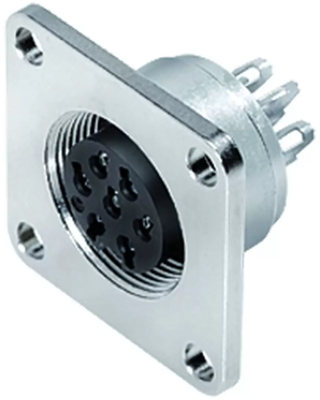

09 0108 300 03 binder Other Circular Connectors Image 1

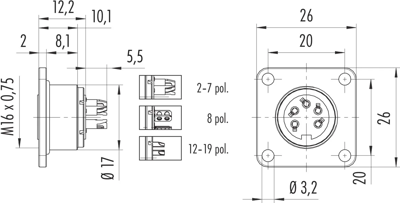

09 0108 300 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.0313 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
11.03 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0313 €
10 pcs.
10.2578 €
50 pcs.
9.5319 €
100 pcs.
8.5799 €
*incl. VAT plus shipping costs
Subject to prior sale

Square female panel mount connector, 09 0108 300 03, binder

M16 IP67 Square female panel mount connector, Contacts: 3 DIN, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Pin number 3 pole
Shell Material zinc die casting
Cable cross-section 0.75 mm²
Version panel socket
Assembly panel mounting
Additional parts equipped
contact surface silver-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
