09 0104 300 02 | binder

Panel socket, 2 pole, solder connection, screw locking, straight, 09 0104 300 02

Order No.: 70P1391
EAN: 4099891702335
MPN:
09 0104 300 02
Series: 723

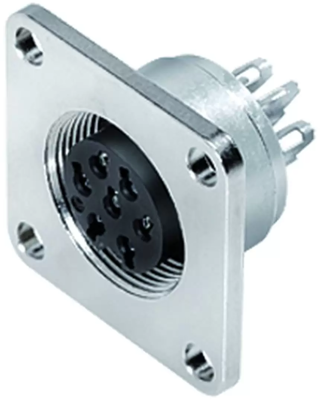

09 0104 300 02 binder Other Circular Connectors Image 1

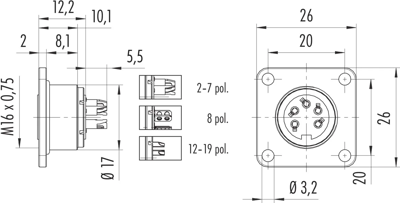

09 0104 300 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.8409 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.84 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8409 €
10 pcs.
10.0793 €
50 pcs.
9.3891 €
100 pcs.
8.4490 €
*incl. VAT plus shipping costs
Subject to prior sale

Square female panel mount connector, 09 0104 300 02, binder

M16 IP67 Square female panel mount connector, Contacts: 2, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Pin number 2 pole
Assembly panel mounting
Orientation straight
Version panel socket
Additional parts equipped
Type of locking screw locking
Contact connection solder connection
contact surface silver-plated
Cable cross-section 0.75 mm²
Shell Material zinc die casting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
