09 0103 99 02 | binder
Panel plug, 2 pole, THT, screw locking, straight, 09 0103 99 02
Unit Price (€ / pc.)
13.2566 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
13.26 € *
Price list
Quantity
Price per unit*
1 pcs.
13.2566 €
10 pcs.
12.3165 €
50 pcs.
11.4478 €
100 pcs.
10.3054 €
*incl. VAT plus shipping costs
Subject to prior sale

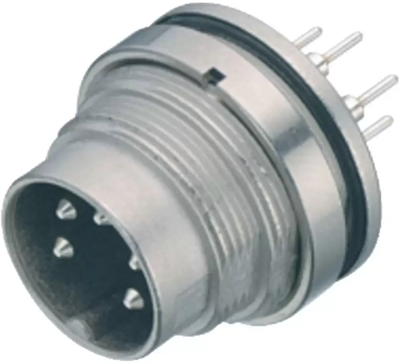

Male panel mount connector, 09 0103 99 02, binder
M16 IP67 Male panel mount connector, Contacts: 2, unshielded, THT, IP67, UL, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Version | panel plug | |
| Contact connection | THT | |
| Pin number | 2 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
