09 0103 89 02 | binder

Panel plug, 2 pole, solder connection, screw locking, straight, 09 0103 89 02

Order No.: 70P1387
EAN: 4099891702298
MPN:
09 0103 89 02
Series: 723
09 0103 89 02 binder Other Circular Connectors Image 1
09 0103 89 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.2332 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.23 € *
Price list
Quantity
Price per unit*
1 pcs.
12.2332 €
10 pcs.
11.3764 €
50 pcs.
10.5672 €
100 pcs.
9.5200 €
*incl. VAT plus shipping costs
Subject to prior sale

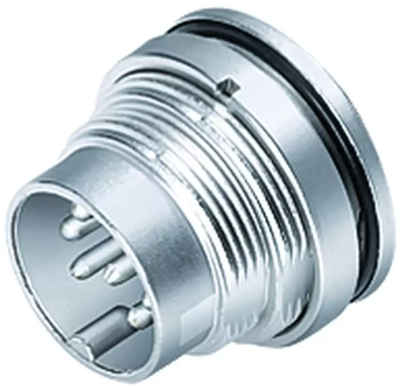

Male panel mount connector, 09 0103 89 02, binder

M16 IP67 Male panel mount connector, Contacts: 2, unshielded, solder, IP67, UL, front fastened.

Technical specifications
Filter Property Value
Version panel plug
Orientation straight
Shell Material zinc die casting
Pin number 2 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
