09 0082 20 04 | binder

Panel socket, 4 pole, THT, screw locking, straight, 09 0082 20 04

Order No.: 71F2383
EAN: 4099889703801
MPN:
09 0082 20 04
Series: 711

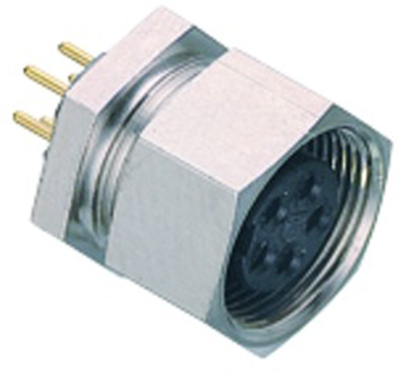

09 0082 20 04 binder Other Circular Connectors Image 1

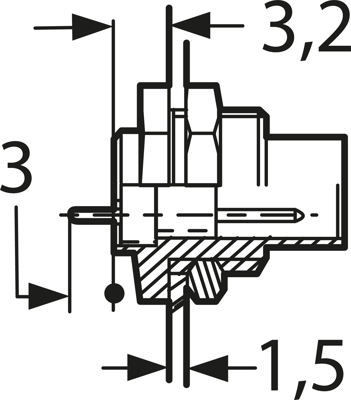

09 0082 20 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.2943 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.29 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2943 €
10 pcs.
7.4613 €
50 pcs.
6.5688 €
100 pcs.
5.9143 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. max. 0.25 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 4.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

With PCB solder pins, type 711.

Type: 09-0082-20-04, 4-pole

Technical specifications
Filter Property Value
Pin number 4 pole
Shell Material CuZn
Cable cross-section 0.25 mm²
Type of locking screw locking
contact surface gold-plated
Orientation straight
Additional parts equipped
Contact connection THT
Version panel socket
Assembly PCB mounting
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
