09 0073 00 02 | binder

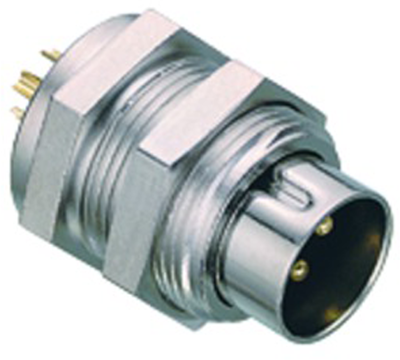

Panel plug, 2 pole, solder connection, screw locking, straight, 09 0073 00 02

Order No.: 71F2218
EAN: 4099889703580
MPN:
09 0073 00 02
Series: 711
09 0073 00 02 binder Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
7.5089 € *
Next delivery: 75 pcs. on 2025-07-29
Total Price:
7.51 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5089 €
10 pcs.
6.6045 €
100 pcs.
5.7953 €
250 pcs.
5.5454 €
1000 pcs.
5.2003 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 711.

With screw lock. Compact and highly reliable; Female contacts: CuSn, male contacts:copper zinc. Contact finish: gold-plated. Cable cross-section: solder contacts. 2- to 5-pole: max. 0.25 mm², 7- and 8-pole max. 0.14 mm². Contact carrier: plug/jack: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 V-0. Flanged housing: CuZn. Cable exit: 3.0 to 4.0 mm. Degree of protection housing: (IEC 60529): IP 40. Degree of soiling: 1, Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 2- and 3-pole 4.0 A, 4- and 5-pole 3.0 A, 7- and 8-pole: 1.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: –40 to +85 °C.

Male panel mount connector, solder terminals, type 711.

Type: 09-0073-00-02, 2-pole

Technical specifications
Filter Property Value
Contact connection solder connection
Cable cross-section 0.25 mm²
Shell Material CuZn
Type of locking screw locking
Additional parts equipped
Orientation straight
Pin number 2 pole
contact surface gold-plated
Assembly panel mounting
Version panel plug
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
Date of RoHS guidelines 3/31/15
SVHC free No
