09 0066 00 07 | binder

Panel socket, 7 pole, solder cup, bayonet locking, straight, 09 0066 00 07

Order No.: 70F9394
EAN: 4099889740837
MPN:
09 0066 00 07
Series: 690

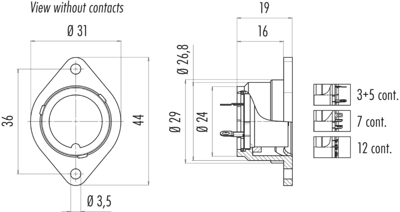

09 0066 00 07 binder Other Circular Connectors Image 1

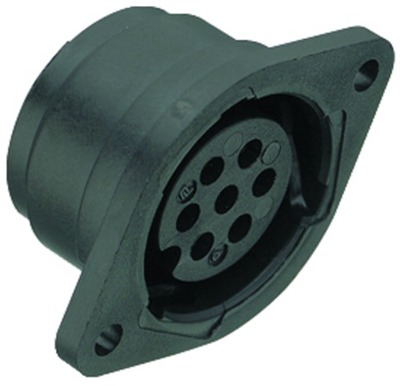

09 0066 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.0400 € *
Available: 48 pcs.
Leadtime: On Request **
Total Price:
19.04 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0400 €
10 pcs.
17.8976 €
50 pcs.
16.8266 €
100 pcs.
15.8151 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial connector, type Binder 690

Robust design with bayonet lock.; Contacts: copper tin. Contact finish: silver-plated, . Cable connection: solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.

Female panel mount connector, with bayonet lock, type 690.

Material: PBT UL 94 V-0.

Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0066-00-07, 7-pole, 250 V/5.0 A

Technical specifications
Version panel socket
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder cup
Type of locking bayonet locking
Cable diameter 5 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface silver-plated
Shell Material aluminum alloy
Logistics
Customs tariff number 85369010
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
