09 0044 00 07 | binder

Panel socket, 7 pole, solder cup, screw locking, straight, 09 0044 00 07

Order No.: 70F9502
EAN: 4099889740875
MPN:
09 0044 00 07
Series: 691

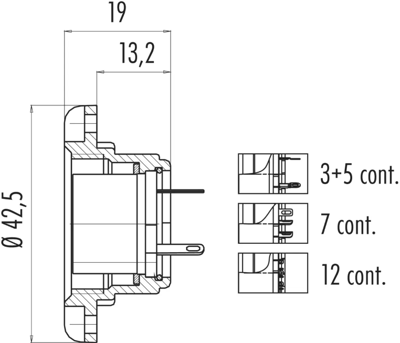

09 0044 00 07 binder Other Circular Connectors Image 1

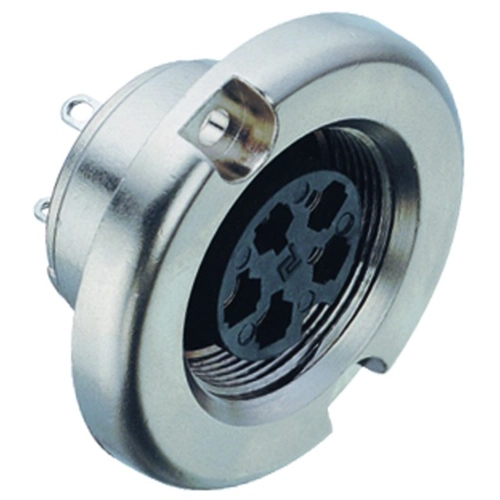

09 0044 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.3680 € *
Available: 67 pcs.
Leadtime: On Request **
Total Price:
32.37 € *
Price list
Quantity
Price per unit*
1 pcs.
32.3680 €
5 pcs.
30.4164 €
15 pcs.
29.2502 €
50 pcs.
27.9650 €
150 pcs.
26.7869 €
*incl. VAT plus shipping costs
**Subject to prior sale

Industrial connector, type Binder 691.

Robust design with screw lock.; Contacts: copper tin. Contact finish: silver-plated. Cable connection: solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.

With screw lock, type 691.

Material: zinc die-cast.

Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0044-00-07, 7-pole, 250 V/5.0 A

Technical specifications
Version panel socket
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 5 to 8 mm
Assembly PCB mounting
Additional parts equipped
contact surface silver-plated
Shell Material aluminum alloy
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
