09 0041 00 07 | binder

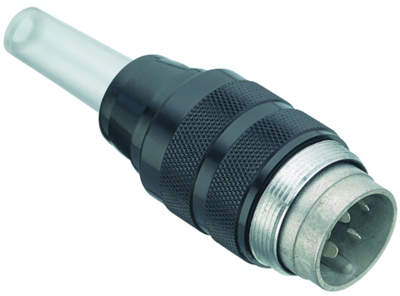

Plug, 7 pole, solder cup, screw locking, straight, 09 0041 00 07
Unit Price (€ / pc.)
44.1014 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
44.10 € *
Price list
Quantity
Price per unit*
1 pcs.
44.1014 €
5 pcs.
41.4477 €
15 pcs.
39.8650 €
50 pcs.
38.1038 €
150 pcs.
36.5092 €
*incl. VAT plus shipping costs
**Subject to prior sale
Industrial connector, type Binder 691.
Robust design with screw lock.; Contacts: CuZn. Contact finish: tinned (male contacts). Cable connection: solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.
With screw lock, type 691.
Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0041-00-07, 7-pole, 250 V/5.0 A
Technical specifications
| Version | Stecker | |
| Cable cross-section | 0,75 mm² | |
| Pin number | 7-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 5 bis 8 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | CuSnZn | |
| Shell Material | Aluminiumlegierung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
