43 1706 002 04 | binder
Valve connector, DIN shape A, 3 pole + PE, 250 V, 0.34-1.5 mm², 43 1706 002 04
Unit Price (€ / pc.)
4.8195 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.82 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8195 €
10 pcs.
4.2364 €
100 pcs.
3.7247 €
250 pcs.
3.5819 €
1000 pcs.
3.3558 €
*incl. VAT plus shipping costs
Subject to prior sale

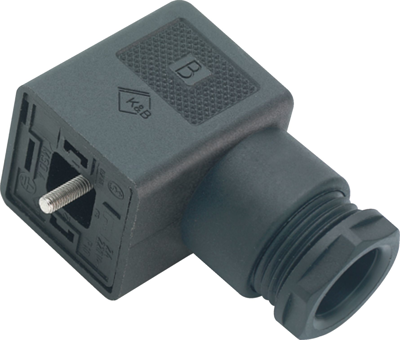

Female power connector, 43-1706-002-04, Franz Binder
Size A Female connector, poles 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 w/o seal, VDE, ESTI+.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIN shape A | |
| Cable cross-section | 0.34-1.5 mm² | |
| Pin number | 3 pole + PE | |
| Rated voltage | 250 V | |
| Degree of protection (IP) | IP40 | |
| Wiring | without circuit | |
| LED display | No | |
| Type of locking | central screw |
Download
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
