UPSIC-2403 | Bicker Elektronik
Supercap-UPS open frame, UPSIC-2403
Unit Price (€ / pc.)
186.83 € *
Next delivery: 2 pcs. on 2025-11-14

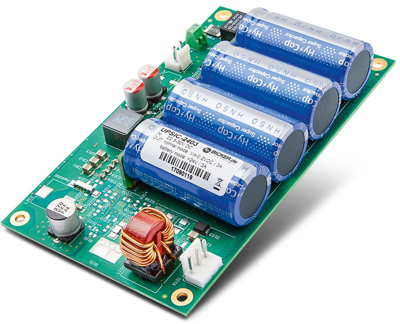

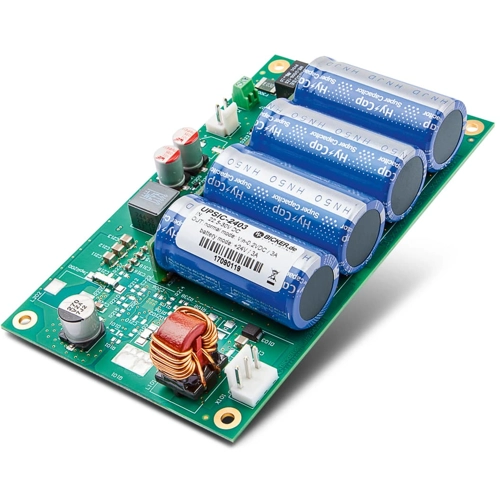

UPS, UPSIC-2403, Bicker Elektronik
The compact UPSIC-2403 protects the connected loads safely against fluctuations and interruptions of the supply voltage. Four maintenance-free supercaps ensure an extremely high cycle strength and short charging time. Through the intelligent "power-sharing", the source does not need to be oversized to load the supercaps. In addition, the UPSIC-2403 provides an active polarity protection, a power fail signal via a relay contact and a free software with timer function.
Features
- Regulated voltage at backup
- Maintenance-free supercaps for energy storage
- High cycle stability up to 500 000
- Charge time <60 sec at maximum charge current
- Extended temperature range -20...+70 °C

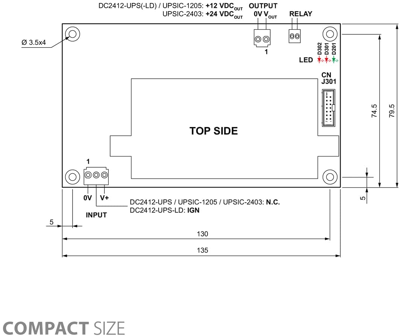

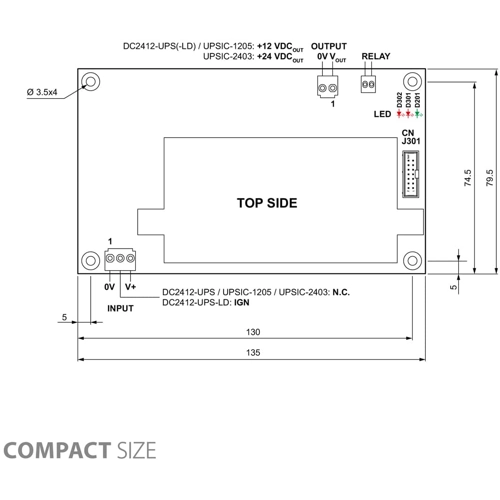

- Compact design
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 135 mm | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 70 °C | |
| Length | 79.5 mm | |
| Output current | 3 A | |
| Output voltage DC | 24 VDC | |
| Input voltage AC | 22.5-30 VDC | |
| Power | 72 W | |
| Height | 28.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
