Supercap-UPS DinRail, UPSIC-1205D
Unit Price (€ / pc.)
284.41 € *
Available: 2 pcs.

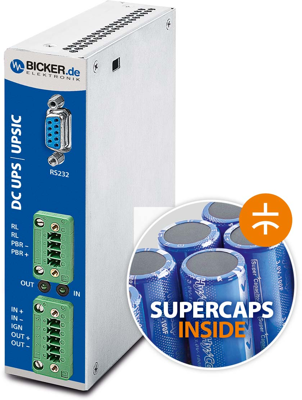

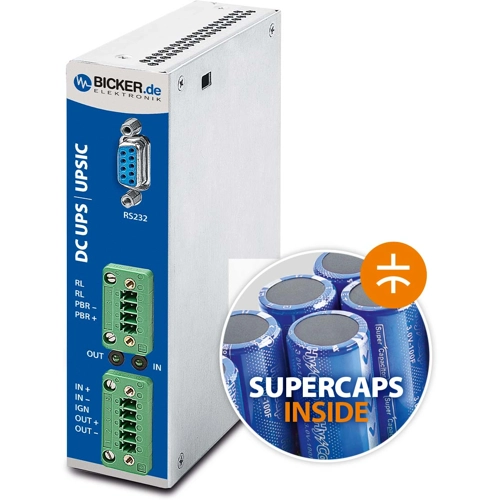

UPS, UPSIC-1205D, Bicker Elektronik
The UPSIC-1205D in a compact DIN rail housing reliably protects connected loads from fluctuations and interruptions in the supply voltage. Maintenance-free supercaps ensure extremely high cycle stability and short charging time. Through the intelligent "power-sharing", the source does not need to be oversized to load the supercaps. In addition, the UPSIC-1205D offers active reverse polarity protection, a power fail signal via a relay contact and a free software with timer function.
Features
- Regulated voltage at backup
- Maintenance-free supercaps for energy storage
- High cycle stability up to 500 000
- Charge time <60 sec at maximum charge current
- Extended temperature range -20...+65 °C
- Compact DIN rail chassis
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 5 A | |
| Power | 60 W | |

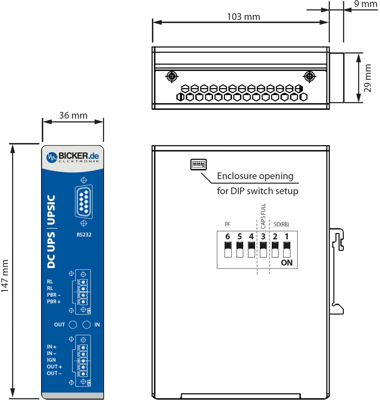

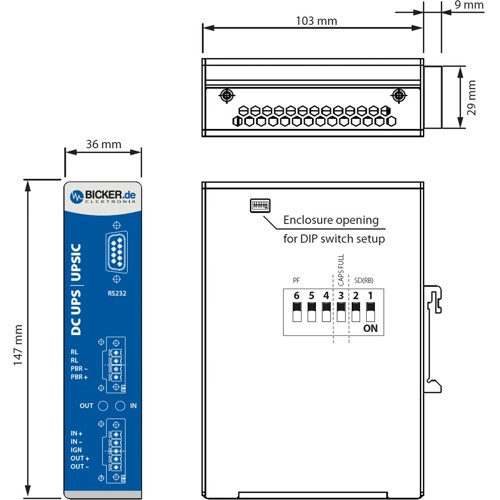

| Width | 36 mm | |
| Height | 147 mm | |
| efficiency | 97 % | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Output voltage DC | 12 VDC | |
| Length | 103 mm | |
| Input voltage AC | 11.6-16 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
