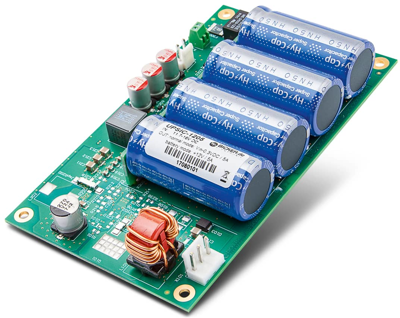

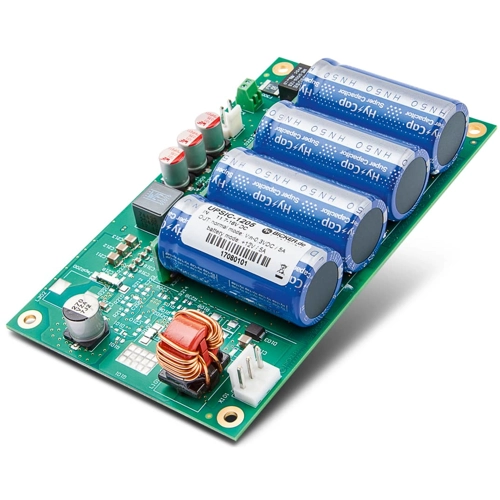

Supercap-UPS open frame, UPSIC-1205
Unit Price (€ / pc.)
184.45 € *
Available: 1 pcs.
UPS, UPSIC-1205, Bicker Elektronik
The compact UPSIC-1205 protects the connected loads safely against fluctuations and interruptions of the supply voltage. Four maintenance-free supercaps ensure an extremely high cycle strength and short charging time. Through the intelligent "power-sharing", the source does not need to be oversized to load the supercaps. In addition, the UPSIC-1205 provides an active polarity protection, a power fail signal via a relay contact and a free software with timer function.
Features
- Regulated voltage at backup
- Maintenance-free supercaps for energy storage
- High cycle stability up to 500 000
- Extended temperature range -20...+70°C
- Compact design
- Active reverse polarity protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 5 A | |
| Power | 60 W | |

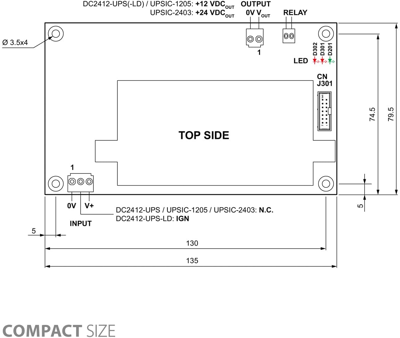

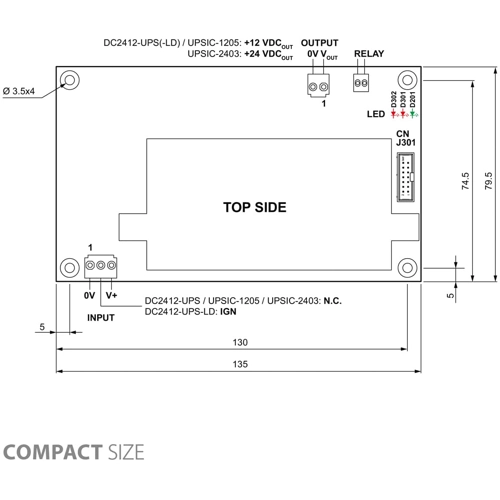

| Width | 135 mm | |
| Height | 28.5 mm | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -20 °C | |
| Output voltage DC | 12 VDC | |
| Length | 79.5 mm | |
| Input voltage AC | 11.6-16 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
