UPSI-2415DP3 | Bicker Elektronik

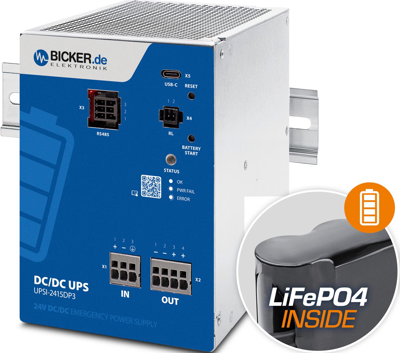

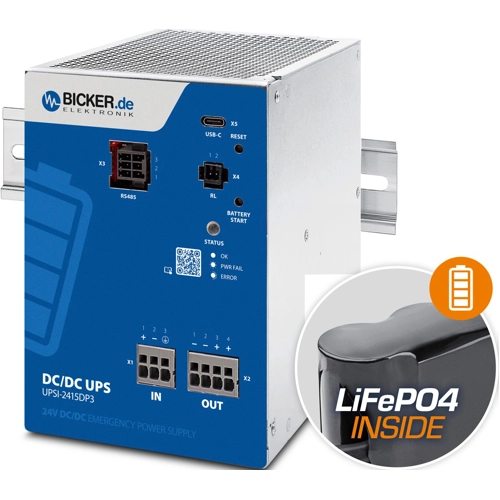

Uninterruptible power supply, UPSI-2415DP3, Bicker Elektronik

The UPSI-2415DP3 is the latest generation of intelligent DC UPS systems for DIN rail mounting - designed for maximum operational reliability and optimal data communication. It ensures reliable protection of control and automation applications in the event of a power failure, voltage dip or flicker. Thanks to robust LiFePO4 battery technology, an extended temperature range of -20…+50°C and up to 6,000 charging cycles, the powerful 24VDC emergency power supply with 15A impresses with its exceptionally long service life and stability in continuous industrial operation.

The DC UPS can be easily integrated into existing control systems via the front-mounted USB-C and RS485 Modbus interfaces and conveniently monitored using the included UPScom management software. Extended protection mechanisms ensure additional operational reliability and increased surge & burst immunity. The compact UPSI-2415DP3 DC UPS in a robust DIN rail housing is ideal for long-term use in control cabinet applications and decentralised power supply solutions. It ensures the protection of embedded IPCs, controllers, motor drives, sensors, and measurement, control and safety systems.

Features

• Intelligent input current detection
• Regulated output voltage in backup mode
• Minimum load detection
• Power-fail timer function
• Relay dry contact on power fail
• Reboot function
• Fuel gauge
• Shutdown via external signal
• Battery start function
