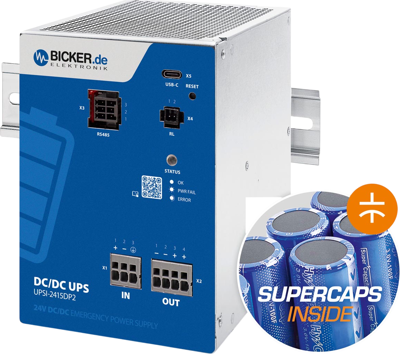

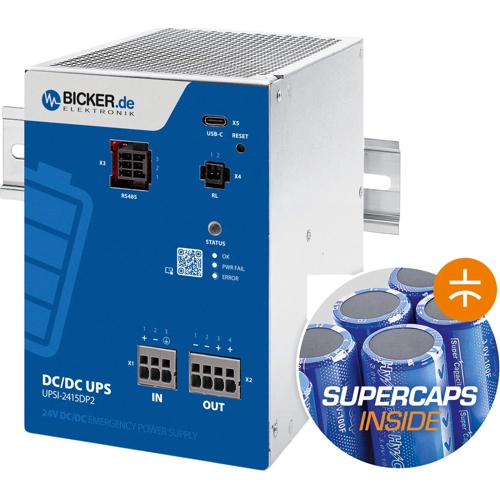

UPSI-2415DP2 | Bicker Elektronik

Uninterruptible power supply, UPSI-2415DP2, Bicker Elektronik

The UPSI-2415DP2 is the latest generation of intelligent DC UPS systems for DIN rail mounting - designed for maximum operational reliability and optimal data communication. It ensures reliable protection of control and automation applications in the event of a power failure, voltage dip or flicker. Instead of conventional batteries, the compact 24VDC emergency power supply relies on powerful double-layer capacitors (EDLC), known as supercaps, which enable up to 500,000 charge and discharge cycles and can therefore be operated completely maintenance-free. Thanks to its extended operating temperature range of -20 +65°C, the UPSI-2415DP2 is particularly suitable for demanding industrial applications.

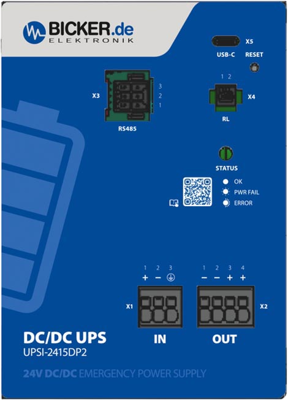

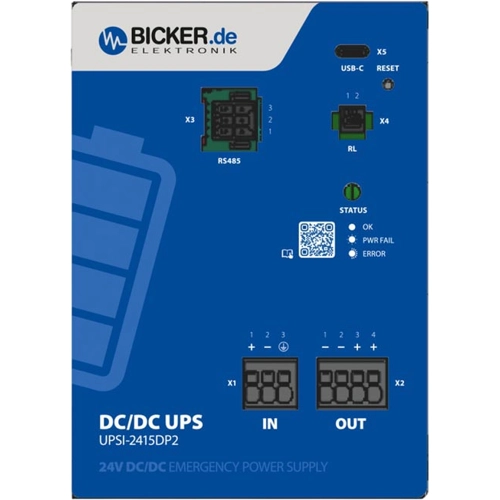

The DC UPS can be easily integrated into existing control systems via the front-mounted USB-C and RS485 Modbus interfaces and conveniently monitored using the included UPScom management software. Extended protection mechanisms ensure additional operational reliability and increased surge & burst immunity. The compact UPSI-2415DP2 DC UPS in a robust DIN rail housing is ideal for long-term use in control cabinet applications and decentralised power supply solutions. It ensures the protection of embedded IPCs, controllers, motor drives, sensors, and measurement, control and safety systems.

Features

• Intelligent input current detection
• Regulated output voltage in backup mode
• Minimum load detection
• Power-fail timer function
• Relay dry contact on power fail
• Reboot function
• Fuel gauge
• Shutdown via external signal
