UPSI-2406IP-26UW | Bicker Elektronik

UPS in IP housing, UPSI-2406IP-26UW

Order No.: 70C1518
EAN: 4251877642824
MPN:
UPSI-2406IP-26UW
Series: UPSI

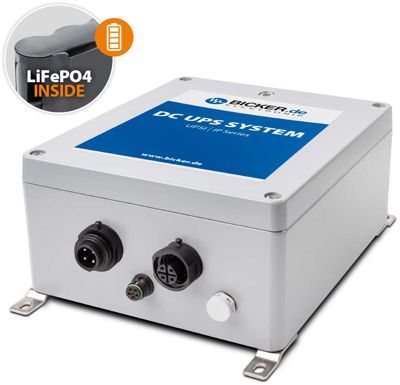

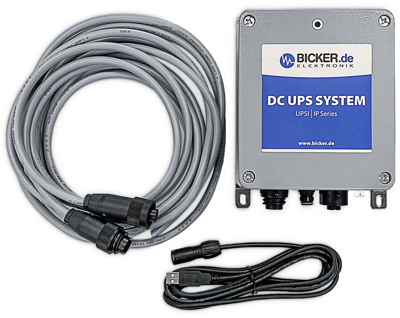

UPSI-2406IP-26UW Bicker Elektronik UPS Image 1

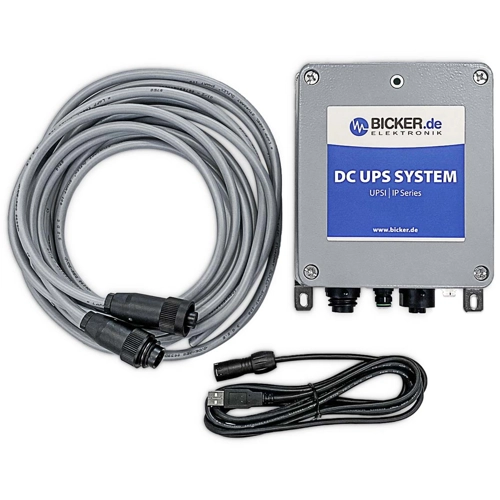

UPSI-2406IP-26UW Bicker Elektronik UPS Image 2

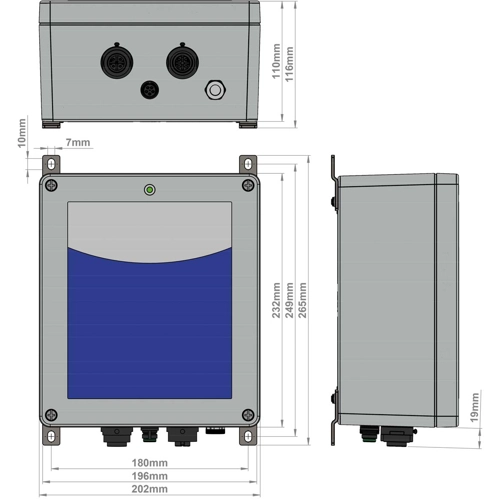

UPSI-2406IP-26UW Bicker Elektronik UPS Image 3

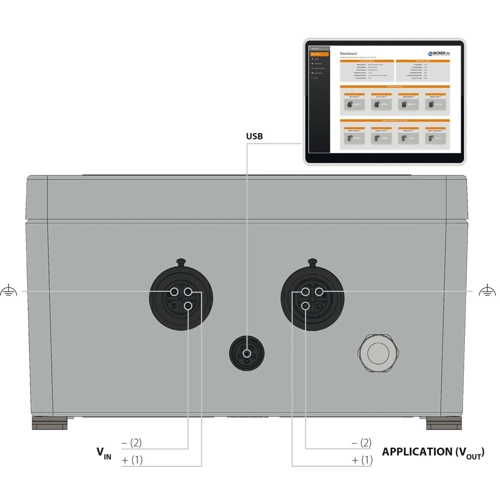

UPSI-2406IP-26UW Bicker Elektronik UPS Image 4
Image may differ
Unit Price (€ / pc.)
1,000.1712 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
1,000.17 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,000.1712 €

UPS, UPSI-2406IP-26UW, Bicker Elektronik

This product has been designed for outdoor and industrial use for extreme environments. The robust housing protects electronic parts according to protection classes IP65 and IP67 against jet water and temporary submersion as well as against dust and dirt. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Outdoor DC-UPS for extreme environments
  • Protection class IP65 / IP67
  • Capacity 99 Wh
  • Wide input voltage range 8-36 V
  • Robust aluminium enclosure
  • Operating temperature range -20°C to +55 °C
Technical specifications
Output voltage DC 24 VDC
Output current 4.6 A

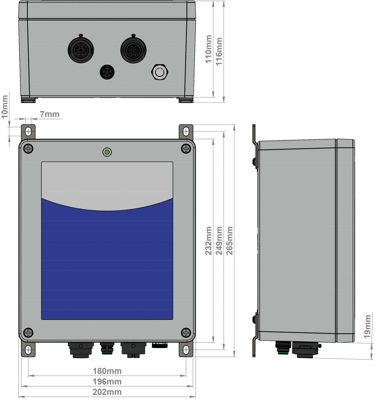

Width 202 mm
Height 232 mm
Power 110 W
Length 110 mm
min. operating temperature -20 °C
max. operating temperature 55 °C
Input voltage AC 8-36 VDC
Logistics
Country of origin DE
Customs tariff number 85044083
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
