UPSI-2406DP2 | Bicker Elektronik

UPS DinRail Supercap, UPSI-2406DP2

Order No.: 70C1505
EAN: 4251877642725
MPN:
UPSI-2406DP2
Series: UPSI

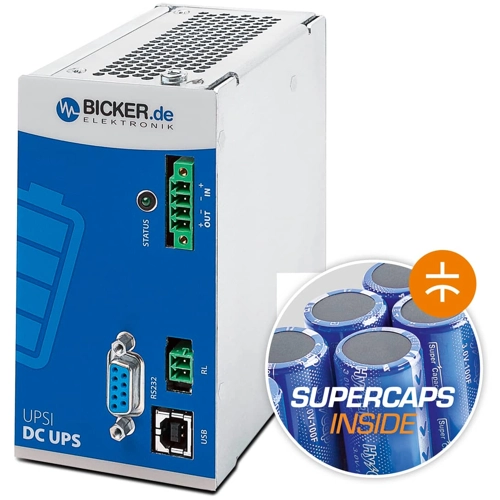

UPSI-2406DP2 Bicker Elektronik UPS Image 1

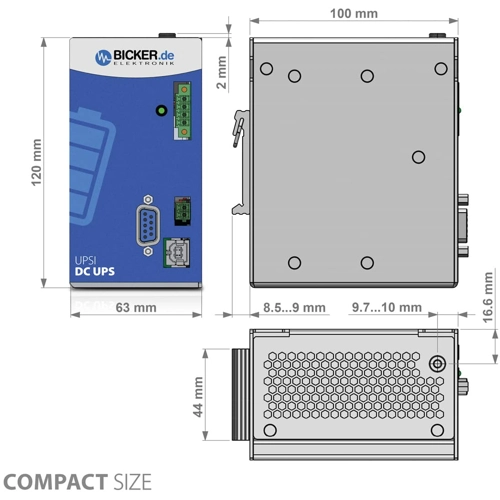

UPSI-2406DP2 Bicker Elektronik UPS Image 2
Image may differ
Unit Price (€ / pc.)
296.31 € *
Available: 1 pcs.
Total Price:
296.31 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
296.31 €

UPS, UPSI-2406DP2, Bicker Elektronik

The DC UPS UPSI-2406DP2 with included supercap energy storage has been designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Operating temperature range -20...+65°C
  • Maintenance free thanks to Supercaps
  • High cycle life up to 500,000 charge- and discharge cycles
  • Intelligent power sharing
  • Regulated output voltage in backup mode
  • Minimum load detection
Technical specifications
Filter Property Value
Width 63 mm
Power 96 W
Length 100 mm
max. operating temperature 65 °C
Input voltage AC 22.5-30 VDC
min. operating temperature -20 °C
Output current 4 A
Height 120 mm
Output voltage DC 24 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044083
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
