UPS DinRail Li-Ion, UPSI-2406DP1

Order No.: 70C1504
EAN: 4251877642701
MPN:
UPSI-2406DP1
Series: UPSI

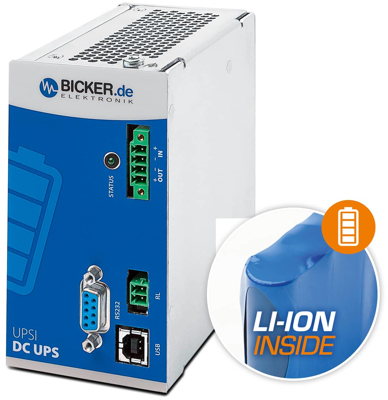

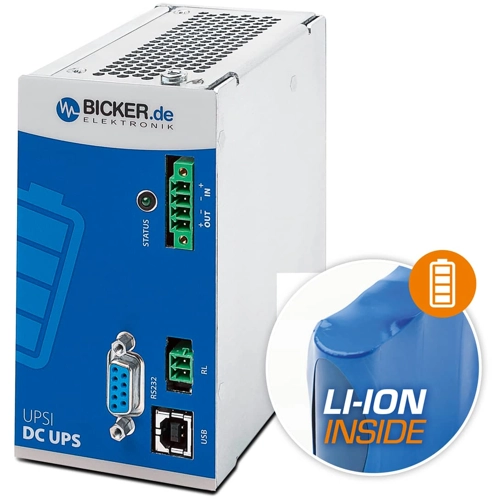

UPSI-2406DP1 Bicker Elektronik UPS Image 1

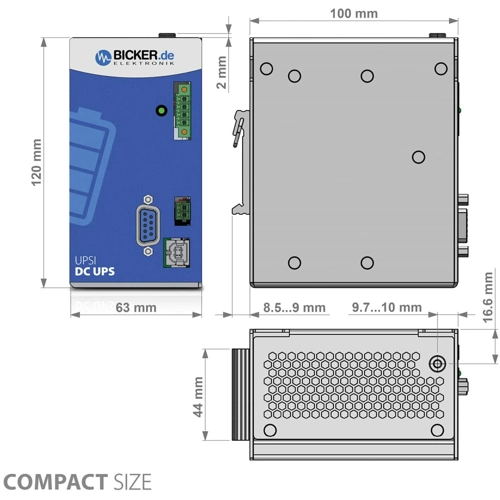

UPSI-2406DP1 Bicker Elektronik UPS Image 2
Image may differ
Unit Price (€ / pc.)
236.81 € *
Available: 1 pcs.
Total Price:
236.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
236.81 €

UPS, UPSI-2406DP1, Bicker Elektronik

The DC UPS UPSI-2406DP1 with included energy storage has been designed for DIN Rail applications. The robust housing protects electronic parts against coarse pollution. The µC-controlled DC-UPS is based on the proven UPSI-technology and features numerous protective and monitoring functions as well as an integrated reboot function, which activates the auto-restart of the computer system, as soon as the input voltage returns during shutdown or later.

Features

  • Intelligent power sharing
  • Regulated output voltage in backup mode
  • Minimum load detection
  • Power fail Timer-Function
  • Relay dry contact on power fail
  • USB and RS232 Interface
Technical specifications
Filter Property Value
Width 63 mm
Power 96 W
Length 100 mm
max. operating temperature 50 °C
Input voltage AC 22.5-30 VDC
min. operating temperature 0 °C
Output current 4 A
Height 120 mm
Output voltage DC 24 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044083
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
