UPS charging and control unit open frame, UPSI-2406

Order No.: 70C1500
EAN: 4251877642619
MPN:
UPSI-2406
Series: UPSI
UPSI-2406 Bicker Elektronik UPS Image 1

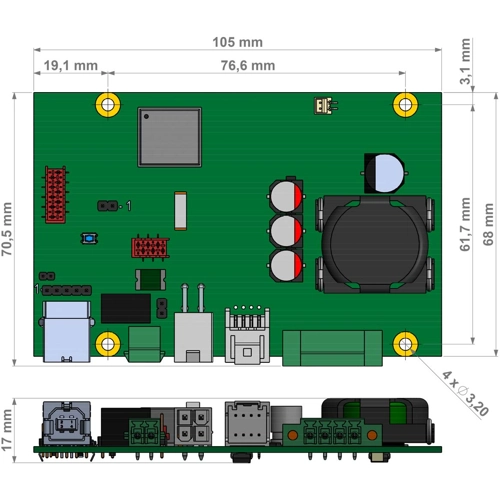

UPSI-2406 Bicker Elektronik UPS Image 2

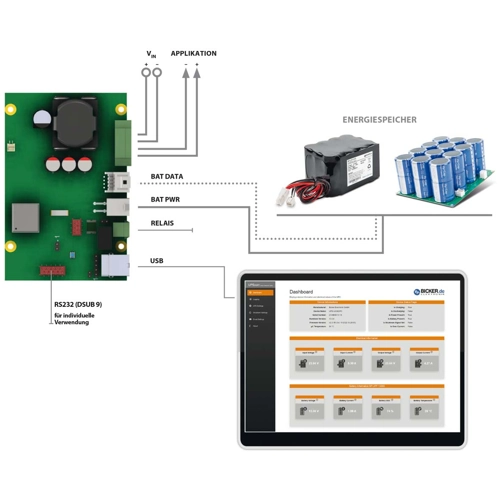

UPSI-2406 Bicker Elektronik UPS Image 3
Image may differ
Unit Price (€ / pc.)
208.25 € *
Next delivery: 4 pcs. on 2025-07-08
Total Price:
208.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
208.25 €

UPS, UPSI-2406, Bicker Elektronik

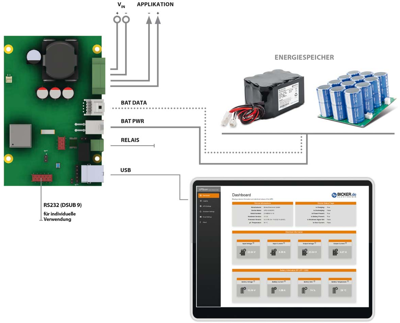

The compact 24V DC UPS UPSI-2406 protects the connected loads safely against fluctuations and interruptions of the supply voltage. The UPSI-2406 can be delivered with two different external storage media - Long-life LiFePO4- or Supercap battery packs. Through intelligent power sharing the source does not need to be oversized to load the battery packs. In addition, the UPSI-2406 offers various functions like min. load disconnect, battery disconnect and external signal shutdown. Through the free HID-Battery-Parameter software adjustments at the UPS can be done via PC.

Features

  • 24V DC UPS
  • For use with long-life LiFePO4 and Supercap battery packs
  • Intelligent power sharing
  • Regulated output voltage during backup operation
  • Min. load disconnect
  • Power fail timer
Technical specifications
Filter Property Value
Power 144 W
max. operating temperature 70 °C
Input voltage AC 22.5-30 VDC
Width 105 mm
min. operating temperature -20 °C
Height 17 mm
Output current 6 A
Length 70.5 mm
Output voltage DC 24 VDC
Logistics
Property Value
Country of origin DE
Customs tariff number 85044083
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
