BP-LFP-1025SD | Bicker Elektronik
Lithium iron phosphate-battery pack, 9.9 V, 2.5 Ah, 91 x 66 x 30 mm, BP-LFP-1025SD
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
213.605 € *
Standard delivery time from the manufacturer is: On Request

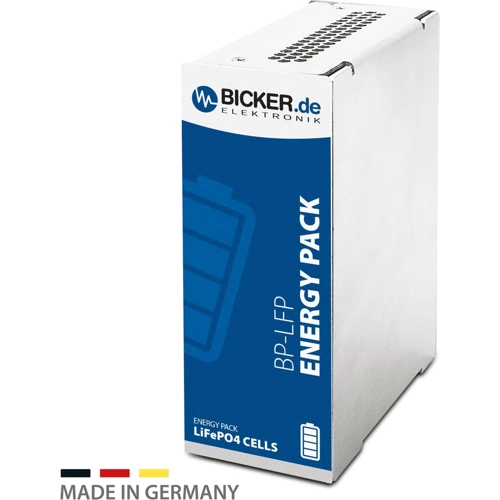

Battery Pack LiFePO4, BP-LFP-1025SD, Bicker Elektronik
This high-quality LiFePO4 battery pack (9.9 V/2.5 Ah) with IEC 62133-2 safety certification features a wide operating temperature range. With a long service life of over 6,000 charge and discharge cycles, these battery packs guarantee durability. Additionally, the LiFePO4 packs offer high energy density. The robust metal housing features a universal DIN-rail mounting system and is ideally suited for use in control cabinets and industrial applications.
Storage technology: LiFePO4
Energy in Wh: 25
Design: DIN rail
Energy in kJ: 90
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Technology | lithium iron phosphate | |
| Rated voltage | 9.9 V | |
| Nominal capacity | 2.5 Ah | |
| Length | 91 mm | |
| Width | 66 mm | |
| Height | 30 mm | |
| Weight | 270 g | |
| min. operating temperature | -20 °C | |
| max. operating temperature | 55 °C | |
| Usage | long-term bridging |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85076000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
