DC300WS | Bicker Elektronik
DC converter, 6-36 VDC, 300 W, 24 VDC, 98 % efficiency, DC300WS
Unit Price (€ / pc.)
177.31 € *
Available: 3 pcs.

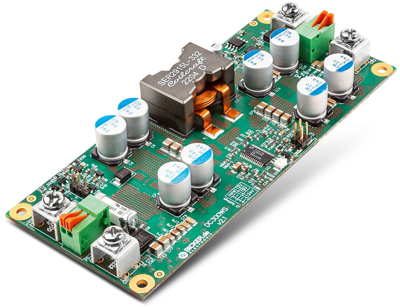

DC/DC converter, DC300WS, Bicker Elektronik
With 98% efficiency and 300 W output power the powerful open frame DC/DC converter DC300WS offers an ultra-wide 6-36 V input as well as three selectable output voltages 12V / 19V / 24 V, so that almost any corresponding single-voltage motherboard or computer system can be supplied. The very compact DC converter delivers fanless full power in the extended temperature range of -20°- +60°C and up to an operating altitude of 5000 m.
Features
- Ultra wide input range 6-36 VDC
- Selectable output voltage +12V, +19V or +24V

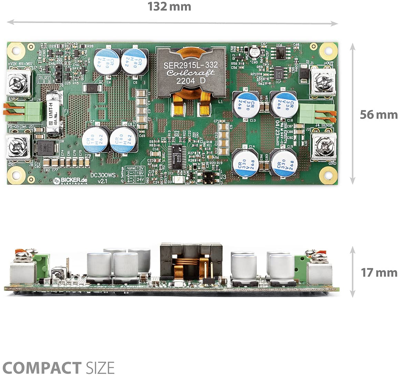

- Very compact design 132 mm x 56 mm x 17 mm
- Full performance in the extended temperature range of -20°...+60°C
- Very high efficiency up to 98%
- More than 10 years capacitor lifetime
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 12.5 A | |
| Power | 300 W | |
| Width | 132 mm | |
| Height | 17 mm | |
| efficiency | 98 % | |
| Output voltage DC | 24 VDC | |
| Length | 56 mm | |
| Input voltage AC | 6-36 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
