DC/DC converter with UPS function, 16-32 VDC, 60 W, ±12 VDC, 94 % efficiency, DC2412-UPSDP2
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
367.71 € *
Available: 1 pcs.

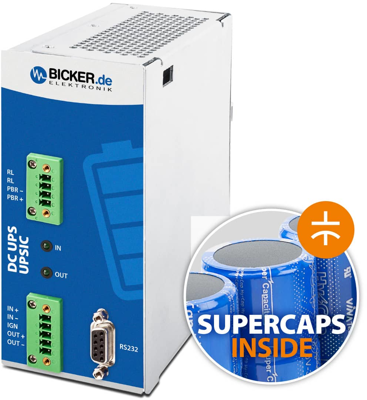

DC/DC converter, DC2412-UPSDP2, Bicker Elektronik
The DC2412-UPSDP2 is the fail-safe 12VDC power supply with ultra-capacitors for IoT / Industrial 4.0, kiosk, POI / POS, signage, medical devices and many more. The Supercaps are charged during normal operation and ensure the uninterruptible power supply. The highly efficient design enables fanless operation in the extended industrial temperature range. The built-in reboot feature allows the system to reboot when the input voltage returns during shutdown or at another time. Via the BIOS, the start function can be activated when input voltage is applied.
Features
- DC UPS with wide-range input 16-32 VDC and uninterruptible 12 VDC output
- Maintenance-free supercaps for energy storage
- High cycle stability up to 500.000
- Extended temperature range -20...+65°C
- Active reverse polarity protection
- Power Fail signal via relay / RS232 connection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Output current | 5 A | |
| Output voltage DC | ±12 VDC | |
| Input voltage AC | 16-32 VDC | |
| Power | 60 W | |
| efficiency | 94 % | |

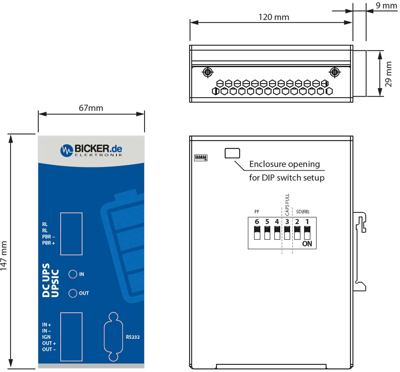

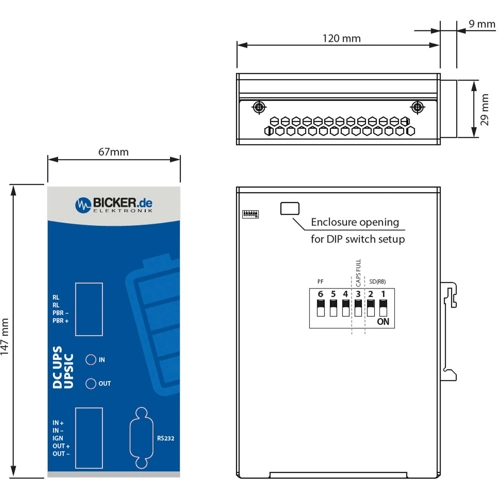

| Length | 120 mm | |
| Width | 67 mm | |
| Height | 147 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85044083 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
