DC161W | Bicker Elektronik

DC/ATX converter, 6-36 VDC, 160 W, ±12 VDC, 93 % efficiency, DC161W

Order No.: 70C1523
EAN: 4251877618065
MPN:
DC161W
Series: DC

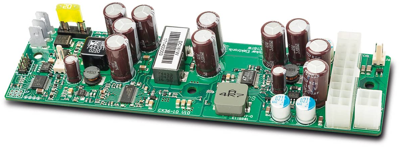

DC161W Bicker Elektronik DC/DC Converters Image 1

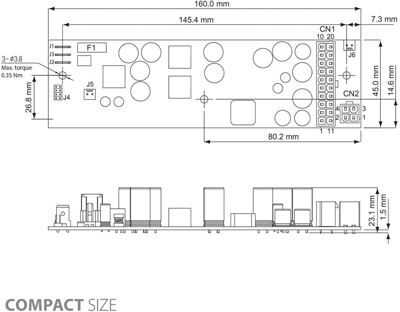

DC161W Bicker Elektronik DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
100.6740 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
100.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
100.6740 €

DC/ATX converter, DC161W, Bicker Elektronik

The robust ATX DC/DC converter is characterised by its high efficiency and wide input voltage range. To achieve a good thermal management, the power modules are installed on the bottom side. In addition to industrial and medical applications the ignition function enables applications in motor vehicles, too. High quality components provide maximum reliability and a long life time.

Features

  • DC-ATX converter
  • Ultra wide input range 6-36 VDC
  • Extended temperature range -20...+70°C
  • Efficiency up to 93 %
  • With motor vehicle ignition function
  • No minimum load required
Technical specifications
Filter Property Value
Power 160 W
Width 160 mm
Output current 12 A
Output voltage DC ±12 VDC
Input voltage AC 6-36 VDC
Length 45 mm
efficiency 93 %
Height 24 mm
Logistics
Property Value
Customs tariff number 85044083
Country of origin TW
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
