DC160WS | Bicker Elektronik

DC converter, 6-36 VDC, 160 W, 24 VDC, 98 % efficiency, DC160WS

Order No.: 70C1524
EAN: 4251877618027
MPN:
DC160WS
Series: DC

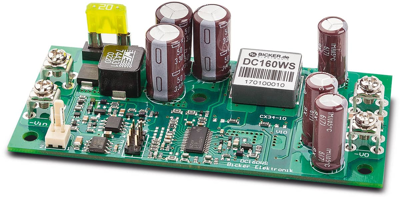

DC160WS Bicker Elektronik DC/DC Converters Image 1

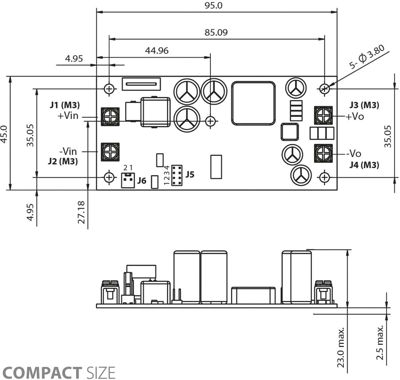

DC160WS Bicker Elektronik DC/DC Converters Image 2
Image may differ
Unit Price (€ / pc.)
77.35 € *
Available: 3 pcs.
Total Price:
77.35 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
77.35 €

DC/DC converter, DC160WS, Bicker Elektronik

The compact DC/DC converter DC160WS has been designed for fanless and conduction cooled operation. It works in an extended temperature range and is characterized by a higly efficient circuit design with up to 98% efficiency. In addition to the ultra wide input range 6-36 VDC, the compact converter offers three selectable output voltages of 12/19/24VDC, so that for example almost any single-voltage mainboard can be supplied.

Features

  • DC/DC converter with 160 W power fanless
  • Ultra wide input range 6-36 VDC
  • Selectable output voltage +12V, +19V or +24VDC
  • Extended temperature range -20...+70°C
  • High efficiency up to 98%
  • Compact design
Technical specifications
Filter Property Value
Width 95 mm
Power 160 W
Length 45 mm
Input voltage AC 6-36 VDC
Output current 4.1 A
efficiency 98 %
Height 25.4 mm
Output voltage DC 24 VDC
Logistics
Property Value
Country of origin TW
Customs tariff number 85044083
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
