DC160W | Bicker Elektronik
DC/ATX converter, 6-36 VDC, 160 W, ±12 VDC, 93 % efficiency, DC160W
Unit Price (€ / pc.)
106.9810 € *
Available: 2 pcs.

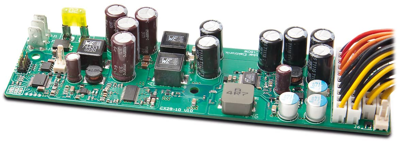

DC/ATX converter, DC160W, Bicker Elektronik
The robust ATX DC/DC converter is characterised by its high efficiency and wide input voltage range. To achieve a good thermal management, the power modules are installed on the bottom side. In addition to industrial and medical applications the ignition function enables applications in motor vehicles, too. High quality components provide maximum reliability and a long life time.
Features
- DC-ATX converter
- Ultra wide input range 6-36 VDC
- Extended temperature range -20...+70°C
- Efficiency up to 93 %
- With motor vehicle ignition function
- No minimum load required
Technical specifications
| Filter | Property | Value |
|---|---|---|

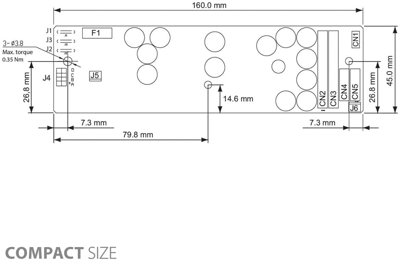

| Width | 160 mm | |
| Power | 160 W | |
| Length | 45 mm | |
| Input voltage AC | 6-36 VDC | |
| Output current | 12 A | |
| efficiency | 93 % | |
| Height | 24 mm | |
| Output voltage DC | ±12 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85044083 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
