93PR5KLF | BI Technologies

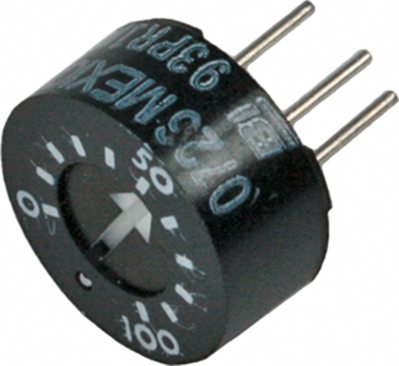

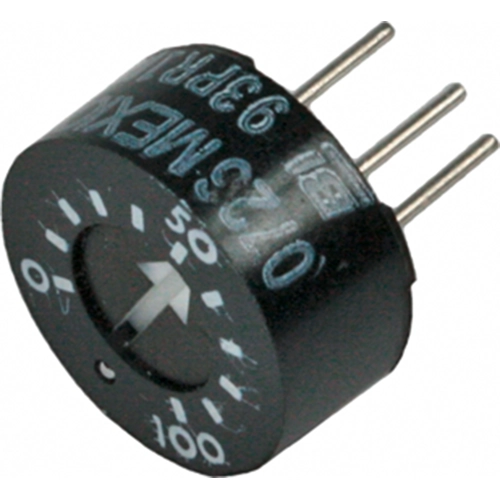

Cermet trimmer potentiometer, 5 kΩ, 1 W, THT, on top, 93PR5KLF
Unit Price (€ / pc.)
2.7013 € *
Standard delivery time from the manufacturer is: 16 Weeks
Trimmer potentiometer, 93PR5KLF, BI Technologies
Single-turn trimmer made of cermet material. Diameter: 1/2 inch.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Temperature coefficient | ±100 ppm/K | |
| max. number of revolutions | 1 | |

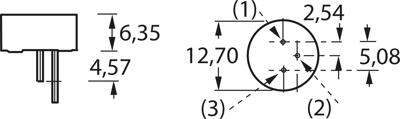

| Contact distance | RM 5.08 | |
| Connection | solder pin | |
| Tolerance | ±10 % | |
| Seeting | on top | |
| Track Taper | linear | |
| ohmic resistance | 5 kΩ | |
| Power | 1 W | |
| Height | 6.35 mm | |
| Assembly | THT | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Version | cermet trimmer potentiometer | |
| Rotary range, electrical | 270 ° |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85334010 |
| Country of origin | MX |
| Original Packaging | Bulk with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
