89PR200KLF | BI Technologies

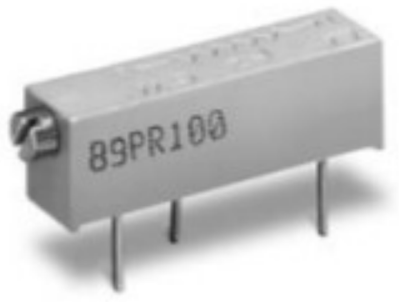

Cermet trimmer potentiometer, 20 turns, 200 kΩ, 0.75 W, THT, lateral, 89PR200KLF
Unit Price (€ / pc.)
1.2257 € *
Standard delivery time from the manufacturer is: 21 Weeks
Trimmer potentiometer, 89PR200KLF, BI Technologies
Multi-turn trimmer made of cermet material. Rectangular shape. 3/4 inches in size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Seeting | lateral | |
| Assembly | THT | |
| Rotary range, electrical | 7200 ° | |
| Version | cermet trimmer potentiometer | |
| Contact distance | RM 2.54 | |
| Temperature coefficient | ±100 ppm/K | |

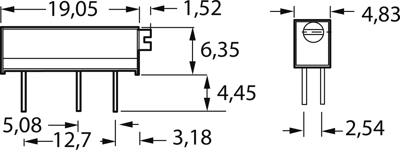

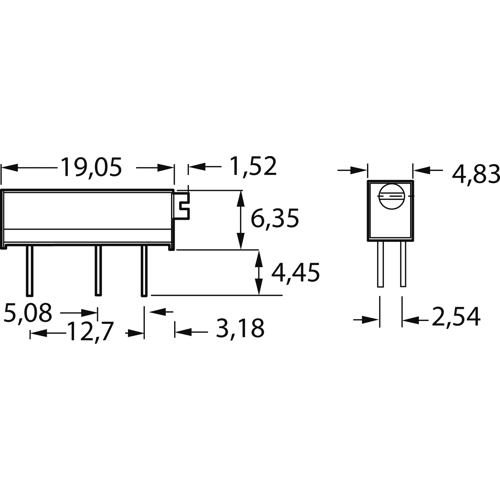

| Height | 6.35 mm | |
| max. operating temperature | 125 °C | |
| Power | 0.75 W | |
| max. number of revolutions | 20 | |
| ohmic resistance | 200 kΩ | |
| Tolerance | ±10 % | |
| Track Taper | linear | |
| Length | 19.05 mm | |
| Connection | solder pin | |
| min. operating temperature | -55 °C | |
| Width | 4.83 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85334010 |
| Original Packaging | Bulk with 100 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
