82PR10KLF | BI Technologies

Cermet trimmer potentiometer, 10 kΩ, 0.5 W, THT, on top, 82PR10KLF

Order No.: 64E7978
EAN: 4099879886095
MPN:
82PR10KLF
Series: 82

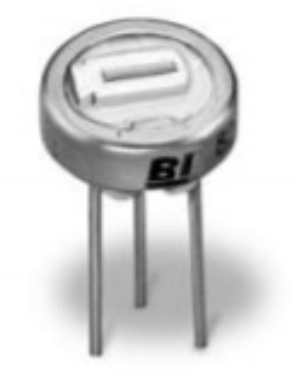

82PR10KLF BI Technologies Trimmer Potentiometers Image 1
82PR10KLF BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
2,113.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1600 pcs.
1.3209 €

Cermet trimmers, type TT electronics/BI technologies 82P.

Single-turn, axial, top adjustment; Electrical range of adjustment: 220°. Load rating: 0.5 W at +70 °C (0 at +125 °C). Operating voltage: 200 VDC. Operating temperatures: –55 to +125 °C. Tolerance: ±10 % (below 200R = ±20 %). Temperature coefficient: ±100.

Type: 10K

Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 1
Track Taper linear
Assembly THT
Height 3.56 mm
Power 0.5 W
Length 6.35 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 220 °
ohmic resistance 10 kΩ
Seeting on top
Logistics
Property Value
Country of origin MX
Customs tariff number 85334010
Original Packaging Bulk with 100 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
