25XR5KLF | BI Technologies

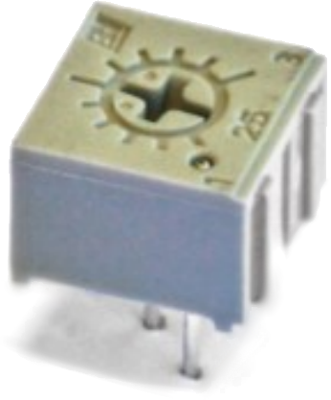

Cermet trimmer potentiometer, 5 kΩ, 0.5 W, THT, lateral, 25XR5KLF
Unit Price (€ / pc.)
1.3328 € *
Standard delivery time from the manufacturer is: 30 Weeks
Trimmer potentiometer, 25XR5KLF, BI Technologies
Cermet trimming potentiometer with a sealed single turn. 1/4 inches square shape.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5 kΩ | |
| Temperature coefficient | ±100 ppm/K | |
| max. operating temperature | 125 °C | |
| max. number of revolutions | 1 | |

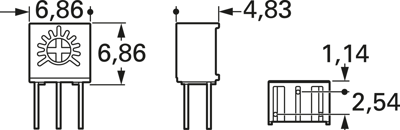

| Length | 6 mm | |
| Track Taper | linear | |
| Connection | solder pin | |
| Power | 0.5 W | |
| Seeting | lateral | |
| min. operating temperature | -55 °C | |
| Contact distance | RM 2.54 | |
| Tolerance | ±10 % | |
| Width | 6 mm | |
| Assembly | THT | |
| Rotary range, electrical | 210 ° | |
| Height | 5 mm | |
| Version | cermet trimmer potentiometer |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
