25PR5KLF | BI Technologies

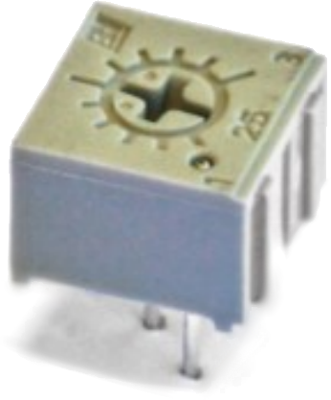

Cermet trimmer potentiometer, 5 kΩ, 0.5 W, THT, on top, 25PR5KLF
Unit Price (€ / pc.)
1.7731 € *
Available: 1,431 pcs.
Total Price:
17.73 € *
Price list
Quantity
Price per unit*
10 pcs.
1.7731 €
50 pcs.
1.5708 €
250 pcs.
1.3447 €
1000 pcs.
1.1900 €
2500 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale
Trimmer potentiometer, 25PR5KLF, BI Technologies
Cermet trimming potentiometer with a sealed single turn. 1/4 inches square shape.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 5 kΩ | |
| Tolerance | ±10 % | |
| Power | 0.5 W | |
| Assembly | THT | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 210 ° | |
| max. number of revolutions | 1 | |
| Seeting | on top | |
| Connection | solder pin | |
| Contact distance | RM 2.54 | |
| Length | 6.86 mm | |
| Width | 6.86 mm | |
| Height | 4.83 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
