25PR100KLF | BI Technologies

Cermet trimmer potentiometer, 100 kΩ, 0.5 W, THT, on top, 25PR100KLF

Order No.: 64E7824
EAN: 4099879885685
MPN:
25PR100KLF
Series: 25

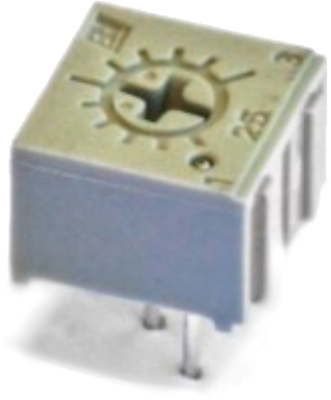

25PR100KLF BI Technologies Trimmer Potentiometers Image 1
25PR100KLF BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
2,118.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.0591 €

Trimmer potentiometer, 25PR100KLF, BI Technologies

Cermet trimming potentiometer with a sealed single turn. 1/4 inches square shape.

Technical specifications
Filter Property Value
Temperature coefficient ±100 ppm/K
max. number of revolutions 1
Track Taper linear
Assembly THT
Width 6.86 mm
Height 4.83 mm
Power 0.5 W
Length 6.86 mm
Contact distance RM 2.54
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection solder pin
Tolerance ±10 %
max. operating temperature 125 °C
Rotary range, electrical 210 °
ohmic resistance 100 kΩ
Seeting on top
Logistics
Property Value
Country of origin US
Customs tariff number 85334010
Original Packaging Bar with 50 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
