23AR1KLFTR | BI Technologies

Cermet trimmer potentiometer, 1 kΩ, 0.25 W, SMD, on top, 23AR1KLFTR

Order No.: 64E7556
EAN: 4099879885319
MPN:
23AR1KLFTR
Series: 23
23AR1KLFTR BI Technologies Trimmer Potentiometers Image 1
23AR1KLFTR BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
3.9151 € *
Available: 3,905 pcs.
Leadtime: 24 Weeks **
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
2.4395 €
50 pcs.
2.1539 €
500 pcs.
1.7017 €
1000 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale

Trimmer potentiometer, 23AR1KLFTR, BI Technologies

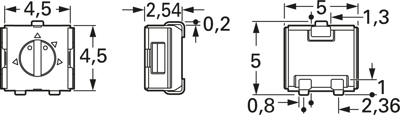

Cermet trimming potentiometer, sealed and surface mountable. 4 mm square shape.

Technical specifications
Temperature coefficient ±100 ppm/K
max. number of revolutions 1
Track Taper linear
Assembly SMD
Width 5 mm
Height 2.7 mm
Power 0.25 W
Length 4.5 mm
Contact distance RM 2.36
Version cermet trimmer potentiometer
min. operating temperature -55 °C
Connection J-hook
Tolerance ±20 %
max. operating temperature 125 °C
Rotary range, electrical 200 °
ohmic resistance 1 kΩ
Seeting on top
Logistics
Country of origin TW
Customs tariff number 85334010
Original Packaging Reel with 500 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
