22AR2KLFTR | BI Technologies

Cermet trimmer potentiometer, 2 kΩ, 0.125 W, SMD, on top, 22AR2KLFTR

Order No.: 65E608
EAN: 4099879889164
MPN:
22AR2KLFTR
Series: 22

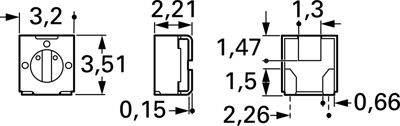

22AR2KLFTR BI Technologies Trimmer Potentiometers Image 1

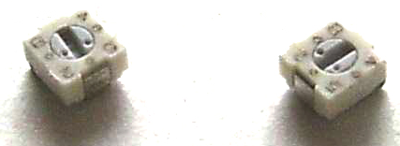

22AR2KLFTR BI Technologies Trimmer Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Available: 6,690 pcs.
Leadtime: 64 Weeks **
Total Price:
19.63 € *
Price list
Quantity
Price per unit*
10 pcs.
1.9635 €
50 pcs.
1.7255 €
250 pcs.
1.4875 €
1000 pcs.
1.3209 €
2000 pcs.
1.2138 €
*incl. VAT plus shipping costs
**Subject to prior sale

Trimmer potentiometer, 22AR2KLFTR, BI Technologies

Surface mount single turn trimmer with a 3 mm square size. It is sealed and made of cermet material.

Technical specifications
Version cermet trimmer potentiometer
ohmic resistance 2 kΩ
Tolerance ±20 %
Power 0.125 W
Assembly SMD
Track Taper linear
Temperature coefficient ±100 ppm/K
Rotary range, electrical 220 °
Mechanic rotary range 250 °
max. number of revolutions 1
Seeting on top
Connection J-hook
Contact distance RM 2.26
Length 3.2 mm
Width 3.4 mm
Height 2 mm
min. operating temperature -55 °C
max. operating temperature 125 °C
Logistics
Country of origin TW
Customs tariff number 85334010
Original Packaging Reel with 1,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
