22AR100KLFTR | BI Technologies
Cermet trimmer potentiometer, 100 kΩ, 0.125 W, SMD, on top, 22AR100KLFTR
Unit Price (€ / pc.)
2.1777 € *
Available: 1,739 pcs.
Total Price:
21.78 € *
Price list
Quantity
Price per unit*
10 pcs.
2.1777 €
50 pcs.
1.9040 €
250 pcs.
1.6541 €
1000 pcs.
1.4399 €
2000 pcs.
1.3447 €
*incl. VAT plus shipping costs
Subject to prior sale

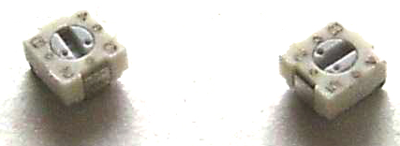

Trimmer potentiometer, 22AR100KLFTR, BI Technologies
Surface mount single turn trimmer with a 3 mm square size. It is sealed and made of cermet material.
Technical specifications
| Version | cermet trimmer potentiometer | |
| ohmic resistance | 100 kΩ | |
| Tolerance | ±20 % | |
| Power | 0.125 W | |
| Assembly | SMD | |
| Track Taper | linear | |
| Temperature coefficient | ±100 ppm/K | |
| Rotary range, electrical | 220 ° | |
| Mechanic rotary range | 250 ° | |
| max. number of revolutions | 1 | |
| Seeting | on top | |
| Connection | J-hook | |
| Contact distance | RM 2.26 | |

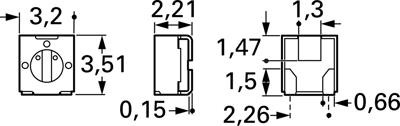

| Length | 3.2 mm | |
| Width | 3.4 mm | |
| Height | 2 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85334010 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
