AR5KL.25 | BI Technologies
Wire-wound potentiometer, 10 turns, 5 kΩ, 5 W, linear, solder lug, AR5KL.25
Unit Price (€ / pc.)
187.0442 € *
Standard delivery time from the manufacturer is: On Request
Wire-wound multi-turn potentiometers, 10 turns, type TT electronics/BI technologies A.
With bushing mount thread 3/8-32; Adjustment range (electrical): 10 turns (3600°). Load rating: 5.0 W at +40 °C (0 at +85 °C). Test voltage (RMS): 1000 V. Linearity: ±0.25 %. Tolerance: ±3.0 %. Temperature coefficient: ±20 (as of 5K0 = ±130).
Type: 5K0
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. number of revolutions | 10 | |
| Connection | solder lug | |
| Mechanic rotary range | 3600 ° | |
| Track Taper | linear | |
| ohmic resistance | 5 kΩ | |
| Power | 5 W | |

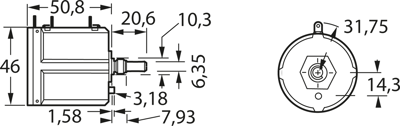

| Width | 50.8 mm | |
| Assembly | straight | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | wire-wound potentiometer | |
| Rotary range, electrical | 3600 ° | |
| Length | 46 mm | |
| axle diameter | 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85333100 |
| Country of origin | MX |
| Original Packaging | Bulk with 1 piece |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
