8136R10KL.25 | BI Technologies
Conductive plastic spiral potentiometer, 10 turns, 10 kΩ, 2 W, linear, solder lug, 8136R10KL.25
Unit Price (€ / pc.)
42.6139 € *
Available: 23 pcs.
Total Price:
42.61 € *
Price list
Quantity
Price per unit*
1 pcs.
42.6139 €
10 pcs.
37.5088 €
20 pcs.
36.4854 €
40 pcs.
35.4620 €
160 pcs.
33.4152 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive plastic multi-turn potentiometers, 10 turns, type TT electronics/BI technologies 8136.

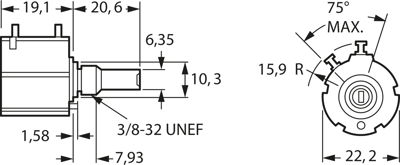

Precision hybrid potentiometer/position sensor with 20.6 mm x 6.35 plastic shaft and 3/8-32 bushing mount thread; Adjustment range (electrical): 10 turns (3600°). Load rating: at +25 °C 2.0 W, at +105 °C 0 W. Test voltage: 1000 V. Linearity: ±0.25 %. Tolerance: ±10 %. Insulation resistance: 1000 Mohm. Temperature coefficient (TC): +100/–150. Mechanical adjustment range; 3600° +15° –0°. Operating temperatures: –25 to +105 °C.
Type: 10K
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Track Taper | linear | |
| Width | 19.1 mm | |
| Rotary range, electrical | 3600 ° | |
| Mechanic rotary range | 3600 ° | |
| Power | 2 W | |
| Length | 22.2 mm | |
| max. operating temperature | 105 °C | |
| Assembly | angled | |
| min. operating temperature | -25 °C | |
| Version | conductive plastic spiral potentiometer | |
| axle diameter | 6.35 mm | |
| ohmic resistance | 10 kΩ | |
| max. number of revolutions | 10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
