7386R5KL.25 | BI Technologies

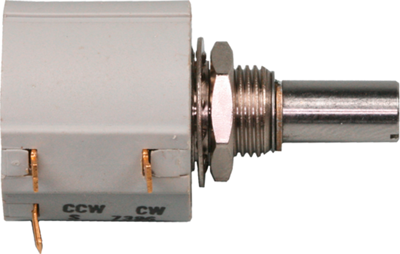

Wire-wound potentiometer, 3 turns, 5 kΩ, 1.5 W, linear, solder lug, 7386R5KL.25
Unit Price (€ / pc.)
40.1506 € *
Available: 30 pcs.
Total Price:
40.15 € *
Price list
Quantity
Price per unit*
1 pcs.
40.1506 €
10 pcs.
35.3192 €
20 pcs.
34.3672 €
40 pcs.
33.3914 €
160 pcs.
31.4636 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound multi-turn potentiometers, 3 turns, type BI technologies 7386.
With bushing mount thread 3/8-32; Adjustment range (electrical): 3 turns (1080°). Load rating: 1.5 W at +70 °C (0 at +125 °C). Test voltage (RMS): 1000 V. Linearity: ±0.25 %. Tolerance: ±5.0 %. Temperature coefficient: ±20.
Type: 5K0

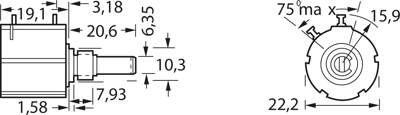

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 5 kΩ | |
| Width | 19.1 mm | |
| Connection | solder lug | |
| Mechanic rotary range | 1080 ° | |
| Rotary range, electrical | 1080 ° | |
| axle diameter | 6.35 mm | |
| max. operating temperature | 125 °C | |
| Power | 1.5 W | |
| min. operating temperature | -40 °C | |
| Version | wire-wound potentiometer | |
| Assembly | angled | |
| Track Taper | linear | |
| max. number of revolutions | 3 | |
| Length | 22.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 10 pieces |
| Country of origin | MX |
| Customs tariff number | 85333100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
