7286R100KL.25 | BI Technologies

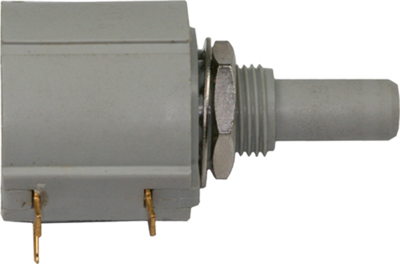

Wire-wound potentiometer, 10 turns, 100 kΩ, 2 W, linear, solder lug, 7286R100KL.25
Unit Price (€ / pc.)
36.1403 € *
Available: 125 pcs.
Total Price:
36.14 € *
Price list
Quantity
Price per unit*
1 pcs.
36.1403 €
5 pcs.
33.4628 €
10 pcs.
31.5707 €
25 pcs.
29.7857 €
50 pcs.
28.3696 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound multi-turn potentiometers, 10 turns, type TT electronics/BI technologies 7276/7286.
With bushing mount thread 3/8-32; Adjustment range (electrical): 10 turns (3600°). Load rating: type 7276 = 2.0 W at +25 °C (0 at +105 °C), type 7286 = 2.0 W at +70 °C (0 at +125 °C). Test voltage (RMS): 1000 V. Linearity: ±0.25 %. Tolerance: ±5.0 %. Temperature coefficient: ±20.
With metal shaft and metal bushing mount, type 7286.
Type: 100K

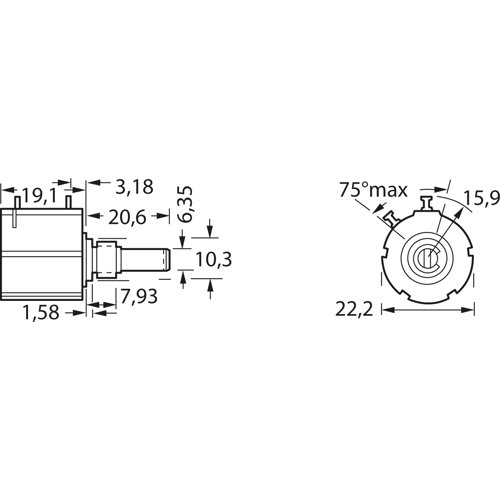

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder lug | |
| Track Taper | linear | |
| Width | 19.1 mm | |
| Rotary range, electrical | 3600 ° | |
| Mechanic rotary range | 3600 ° | |
| Power | 2 W | |
| Length | 22.2 mm | |
| max. operating temperature | 105 °C | |
| Assembly | angled | |
| min. operating temperature | -25 °C | |
| Version | wire-wound potentiometer | |
| axle diameter | 6.35 mm | |
| ohmic resistance | 100 kΩ | |
| max. number of revolutions | 10 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85333100 |
| Original Packaging | Bulk with 10 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
