7276R10KL.25 | BI Technologies

Wire-wound potentiometer, 10 turns, 10 kΩ, 2 W, linear, solder pin, 7276R10KL.25

Order No.: 69E392
EAN: 4099879972941
MPN:
7276R10KL.25
Series: 7276

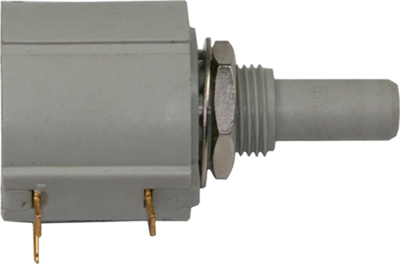

7276R10KL.25 BI Technologies Potentiometers Image 1

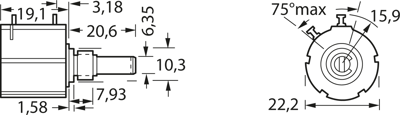

7276R10KL.25 BI Technologies Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
21.8722 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,749.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
80 pcs.
21.8722 €

Wire-wound multi-turn potentiometers, 10 turns, type TT electronics/BI technologies 7276/7286.

With bushing mount thread 3/8-32; Adjustment range (electrical): 10 turns (3600°). Load rating: type 7276 = 2.0 W at +25 °C (0 at +105 °C), type 7286 = 2.0 W at +70 °C (0 at +125 °C). Test voltage (RMS): 1000 V. Linearity: ±0.25 %. Tolerance: ±5.0 %. Temperature coefficient: ±20.

With plastic shaft and plastic bushing mount, type 7276.

Type: 10K

Technical specifications
max. number of revolutions 10
Track Taper linear
Assembly angled
Width 19.1 mm
Mechanic rotary range 3600 °
Power 2 W
Length 22.2 mm
axle diameter 6.35 mm
Version wire-wound potentiometer
min. operating temperature -25 °C
Connection solder pin
max. operating temperature 105 °C
Rotary range, electrical 3600 °
ohmic resistance 10 kΩ
Logistics
Country of origin MX
Customs tariff number 85333100
Original Packaging Bulk with 10 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
