RB | BI Technologies

Analogue adjustment knob, 6.35 mm, 15, Plastic

Order No.: 20H782
EAN: 4099889343687
MPN:
RB
RB ANALOG LF
Series: RB

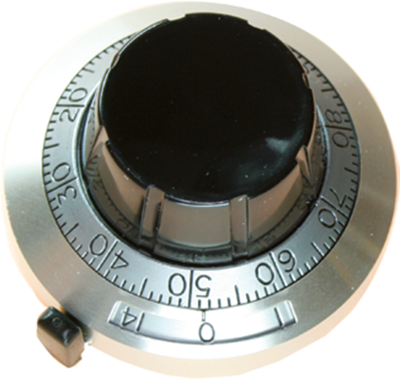

RB BI Technologies Adjustment Knobs Image 1
RB BI Technologies Adjustment Knobs Image 2
Image may differ
Unit Price (€ / pc.)
40.8646 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
40.86 € *
Price list
Quantity
Price per unit*
1 pcs.
40.8646 €
5 pcs.
38.4132 €
15 pcs.
36.9257 €
50 pcs.
35.3192 €
150 pcs.
33.8436 €
*incl. VAT plus shipping costs
Subject to prior sale

Analog dials, type TT electronics/BI technologies RB

15-turn with locking mechanism and bushing for 6.35 mm shaft.

Display: 0 to 14 window. 0 to 90 scale, with increments of ten and additional 1 : 10 scaling, black labeling

Housing: chromium-plated, dull

Knob: black plastic

Operating temperatures: - 55 to +71 °C

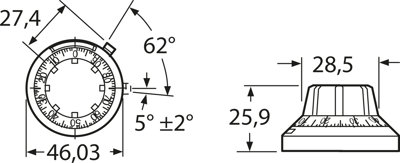

Outer diameter: 46.03 mm

Technical specifications
Filter Property Value
diameter 46.03 mm
Colour black
max. number of revolutions 15
Version analog
For shaft diameter 6.35 mm
Height 25.9 mm
Material plastic
Logistics
Property Value
Country of origin JP
Customs tariff number 90291000
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
