2696 | BI Technologies
Analogue adjustment knob, 6.35 mm, 10, Plastic
Unit Price (€ / pc.)
14.3395 € *
Available: 136 pcs.
Total Price:
14.34 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3395 €
10 pcs.
12.6259 €
50 pcs.
11.7572 €
150 pcs.
11.2336 €
500 pcs.
10.6743 €
*incl. VAT plus shipping costs
Subject to prior sale

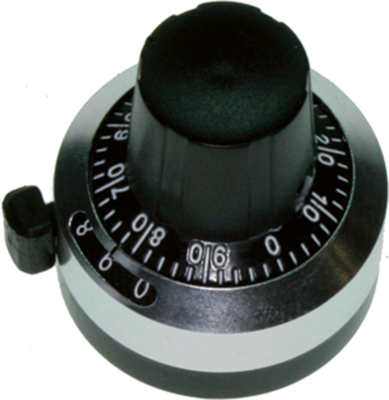

Analog dial, type TT electronics/BI technologies 2696
10-turn with locking device and bushing for 6.35 mm shaft.
Numeric display: 0 to 90, with increments of ten; additional 1 : 5 graduation and window with indication of turns 0 to 9, white numbers on black background
Housing and knob: black plastic, with metal-colored bezel on the housing
Operating temperatures: - 55 to +71 °C

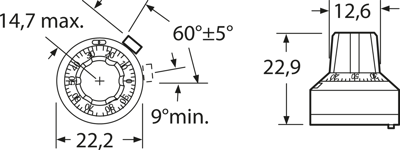

Dimensions: Diameter 22.2 mm, Height 22.9 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | plastic | |
| Version | analog | |
| max. number of revolutions | 10 | |
| Height | 22.9 mm | |
| diameter | 22.2 mm | |
| Colour | black | |
| For shaft diameter | 6.35 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 90291000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
