2646ANALOGLF | BI Technologies

Analogue adjustment knob, 6.35 mm, 20, Plastic, 2646ANALOGLF

Order No.: 20H784
EAN: 4099889343700
MPN:
2646ANALOGLF
2646
Series: 2600
2646ANALOGLF BI Technologies Adjustment Knobs Image 1
2646ANALOGLF BI Technologies Adjustment Knobs Image 2
2646ANALOGLF BI Technologies Adjustment Knobs Image 3
Image may differ
Unit Price (€ / pc.)
23.8000 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,190.00 € *
Price list
Quantity
Price per unit*
50 pcs.
23.8000 €
150 pcs.
22.8242 €
*incl. VAT plus shipping costs
Subject to prior sale

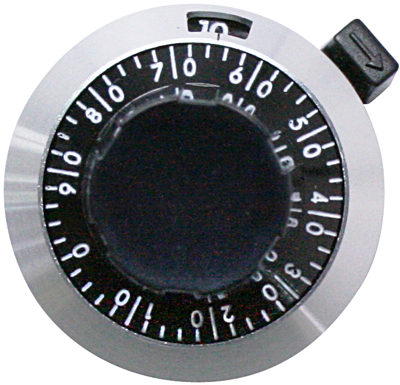

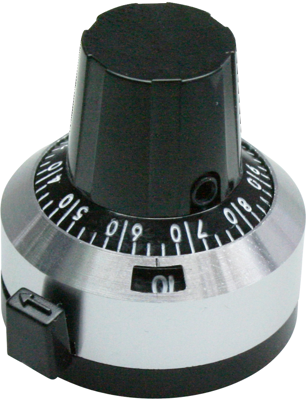

Analog dial, type TT electronics/BI technologies 2646

20-turn, with center lock and bushing for 6.35 mm shaft.

Display: number of turns in a window, black scale ring (set off from the metal-colored housing)

Scale: Numerals 0 to 90 with increments of ten and additional 1 : 5 graduation, white on black

Housing (not the dial ring): metal-colored, dull

Knob: black plastic

Operating temperatures: - 55 to +71 °C

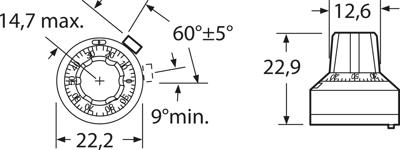

Outer diameter: 22.2 mm

Technical specifications
Filter Property Value
Material plastic
Version analog
max. number of revolutions 20
Height 22.9 mm
diameter 22.2 mm
Colour black
For shaft diameter 6.35 mm
Logistics
Property Value
Country of origin JP
Customs tariff number 90291000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
