PROFIPOL+ | Benning

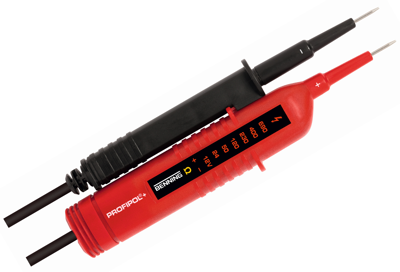

Benning voltage/continuity tester, PROFIPOL+, 020023
Order No.: 22K8394
EAN: 4014651200234
MPN:
PROFIPOL+
020023
Unit Price (€ / pc.)
59.6547 € *
Standard delivery time from the manufacturer is: 2 Weeks
Voltage- and continuity tester Benning PROFIPOL +
• Voltage from 12 V to 690 V AC/ DC (LED)
• Display steps: 12, 24, 50, 120, 230, 400, 690 V AC/ DC
are fully functioning with empty or non-inserted batteries
• Acoustic and optical continuity test up to 100 kW (buzzer/yellow W-LED)
• Single pole phase test (red LED) (AC)
• polarity test (+/-) (DC)
• cable defect detector (yellow LED)
• test grip fixation for one-hand handling at sockets and for secure storage
• IP 54 protection (dust-/ splash water proof)
• impact proof and robust case
• built and tested according to DIN EN 61243-3, VDE 0682-401:2015
• Overvoltage category CAT III 600 V, CAT II 690 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | voltage/continuity tester | |
| max. voltage measuring range (DC) | 690 V | |
| max. voltage measuring range (AC) | 690 V | |
| Continuity test | 0-100 kΩ | |
| Rated category | CAT III | |
| Display | LED | |
| Degree of protection (IP) | IP54 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IE |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
