DUSPOL ANALOG | Benning

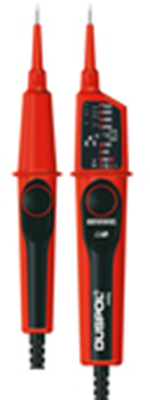

Benning voltage/continuity tester, DUSPOL ANALOG, 050261
Unit Price (€ / pc.)
76.4337 € *
Available: 1 pcs.
Voltage testers with selectable moving-coil level indicator, type Benning Duspol analog.
For testing DC and AC voltage, phase sequence, phase and polarity, with measuring point illumination, fault current circuit-breaker test and vibration alarm for voltage detection; Voltage (LED/moving coil): 12 to 1000 V AC/DC. Current consumption: selectable 600 mA burden (at 1000 VDC). Approval: IEC/EN 61243-3 (DIN VDE 0682-401). Degree of protection: IP 65. Overvoltage category: CAT IV 600 V, III 1000 V.
Type: 050261, voltage tester
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. voltage measuring range (AC) | 1000 V | |
| Degree of protection (IP) | IP65 | |
| max. voltage measuring range (DC) | 1000 V | |
| Rated category | CAT III, CAT IV | |
| Version | voltage/continuity tester | |
| Display | LED |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | IE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
