ST 725 | Benning

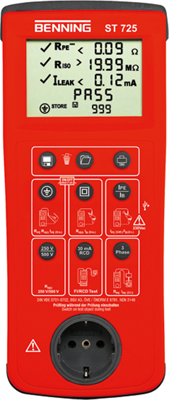

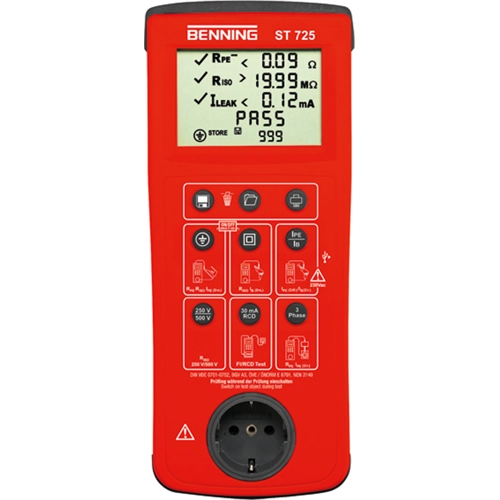

Equipment testers to DIN VED 0701/0702, type Benning ST 725.

For testing equipment containing line voltage-dependent switchgear/power supplies/relays, equipment/tools with electronic control system, IT and communication equipment, as well as equipment that that needs to be connected to line voltage in order to complete a full test, compliant with VDE 0701-0702, DGUV Directive 3, ÖVE/ÖNORM E 8701, NEN 3140; Features: measured value memory for 999 test objects (can be read via Micro USB port), download software for reporting in MS Excel format, direct logging via serial interface, integrated real-time clock for saving measured values with test date and time, automatic test sequence with pass/fail indication for equipment of class I, II (III) and cable test. Ground conductor resistance: 0.05 to 20 ohm (±200 mADC). Insulation resistance: 0.1 Mohm to 20 Mohm ( 250 V/500 VDC). Ground conductor/touch current: 0.1 to 20 mA. Ground fault/RCD test current: 30 mA/150 mA (5 x). Tripping time: 0 to 500 ms. Voltage on external Schuko-style outlet: 50 V to 270 V ( L-N, L-PE, N-PE). Measurement category: CAT II 300 V. Dimensions: 270 x 115 x 55 mm. Weight: 1100 g. Supplied with carrying bag, test lead with alligator clip, power cable, IEC appliance cable, batteries, Micro USB cable, and software.

Type: ST 725, equipment tester
